Park System: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Using petroleum jelly to hold the bearing or bushing in place, install the output shaft bearing for slip yoke models and the bushing for fixed yoke models.

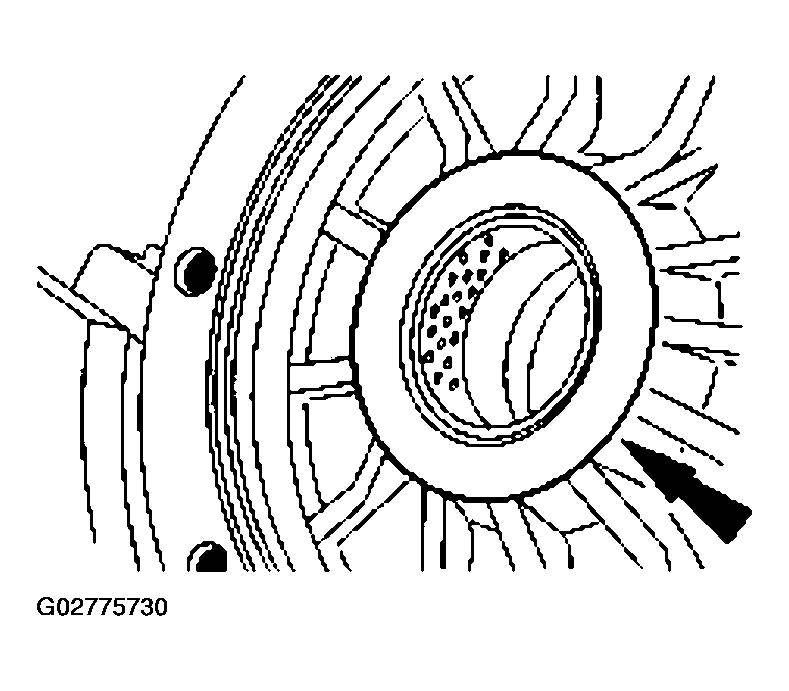

    Fig 1: Installing Output Shaft Bearing For Slip Yoke Models
    G02775730Courtesy of FORD MOTOR CO.
  2. CAUTION: Be careful when installing the output shaft not to damage the seals.
    Fig 2: Installing Output Shaft And Park Gear Assembly
    G02775731Courtesy of FORD MOTOR CO.
  3. If the output shaft was removed, install the output shaft and park gear assembly.
  4. Install the park pawl shaft.
    1. Install the park pawl shaft.
    2. Install the park pawl.
    3. Install the park pawl return spring.

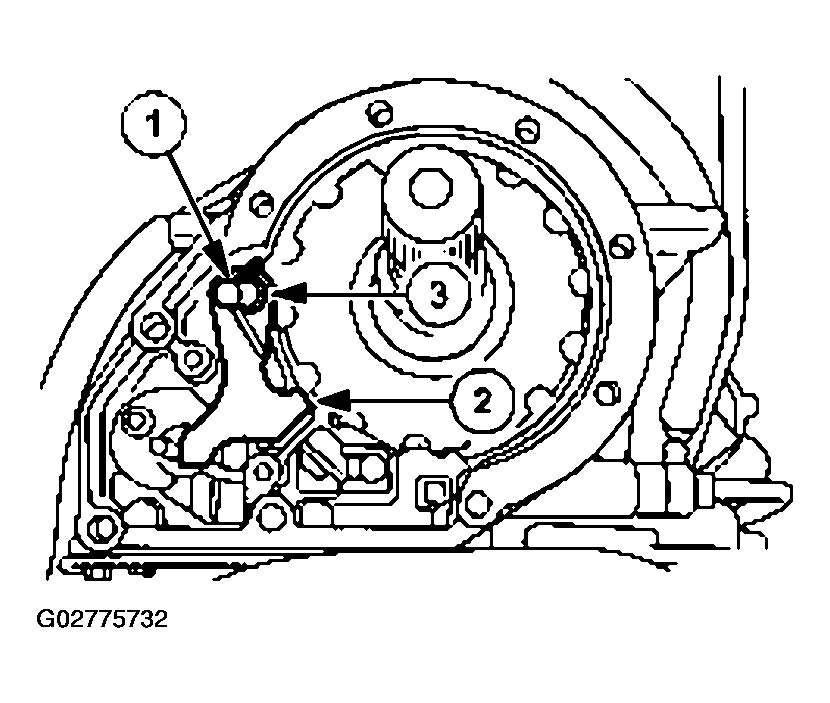

      Fig 3: Installing Park Pawl Shaft
      G02775732Courtesy of FORD MOTOR CO.
  5. Install the parking rod guide plate.
    1. Install the parking rod guide plate.
    2. Install the bolts.

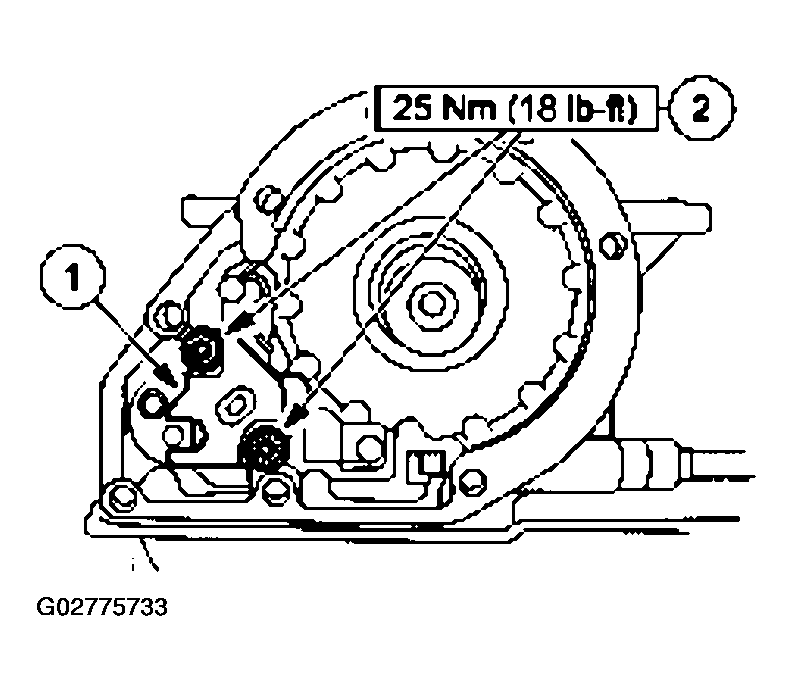

      Fig 4: Installing Parking Rod Guide Plate
      G02775733Courtesy of FORD MOTOR CO.
  6. Install a new extension housing gasket.

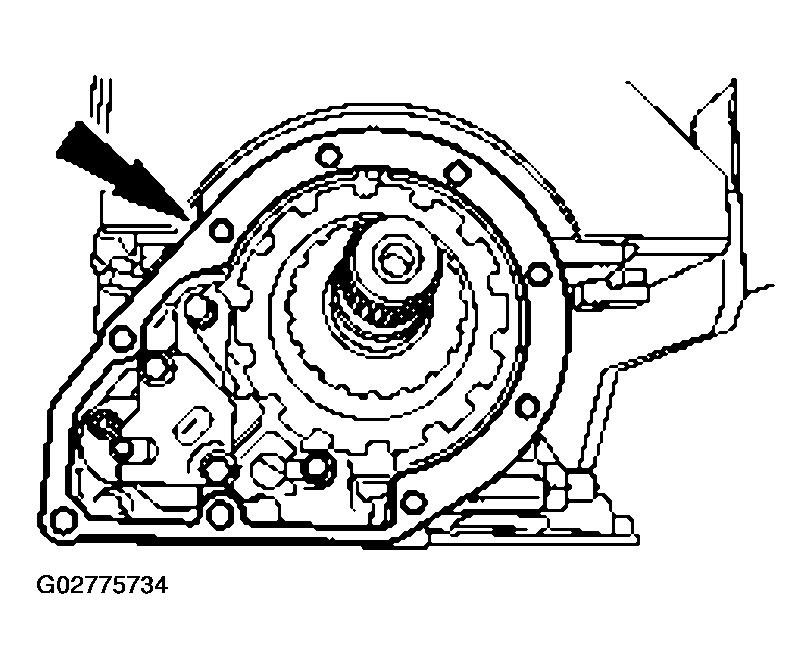

    Fig 5: Installing Extension Housing Gasket
    G02775734Courtesy of FORD MOTOR CO.
  7. Install the extension housing and the nine bolts.
    Fig 6: Installing Extension Housing And Nine Bolts
    G02775735Courtesy of FORD MOTOR CO.

    Vehicles equipped with a fixed yoke

  8. Using the special tool, install the output shaft retaining nut.
    Fig 7: Installing Output Shaft Retaining Nut
    G02775736Courtesy of FORD MOTOR CO.

    All vehicles

  9. Connect the output shaft speed (OSS) sensor electrical connector.
    Fig 8: Connecting Output Shaft Speed Sensor Electrical Connector
    G02775737Courtesy of FORD MOTOR CO.
  10. Lower the transmission onto the rear mount and install the bolts.

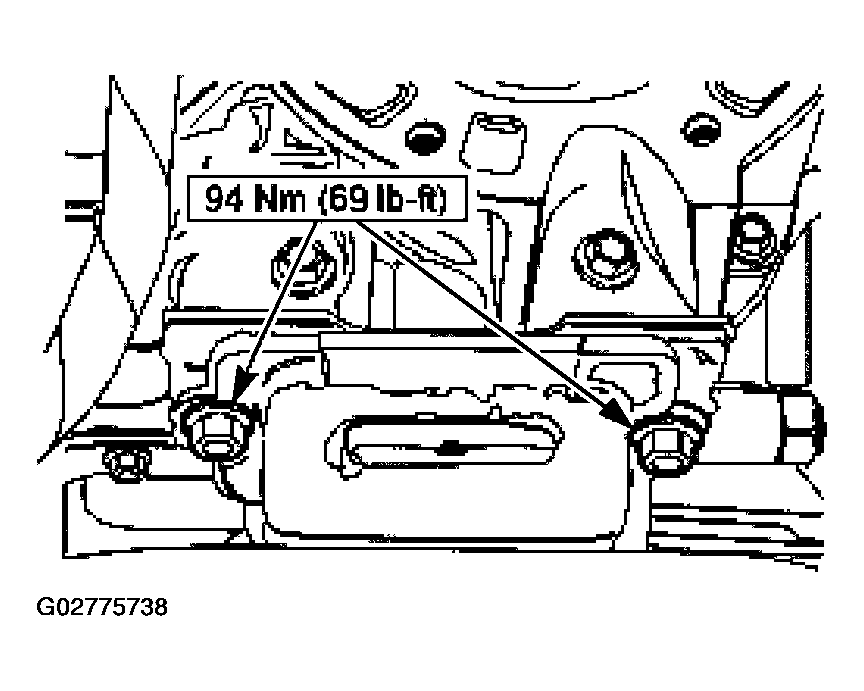

    Fig 9: Lowering Transmission Onto Rear Mount
    G02775738Courtesy of FORD MOTOR CO.

    Vehicles equipped with a fixed yoke

  11. If equipped, install the output shaft flange.
    1. Install the output shaft flange.
    2. Install a new bolt.

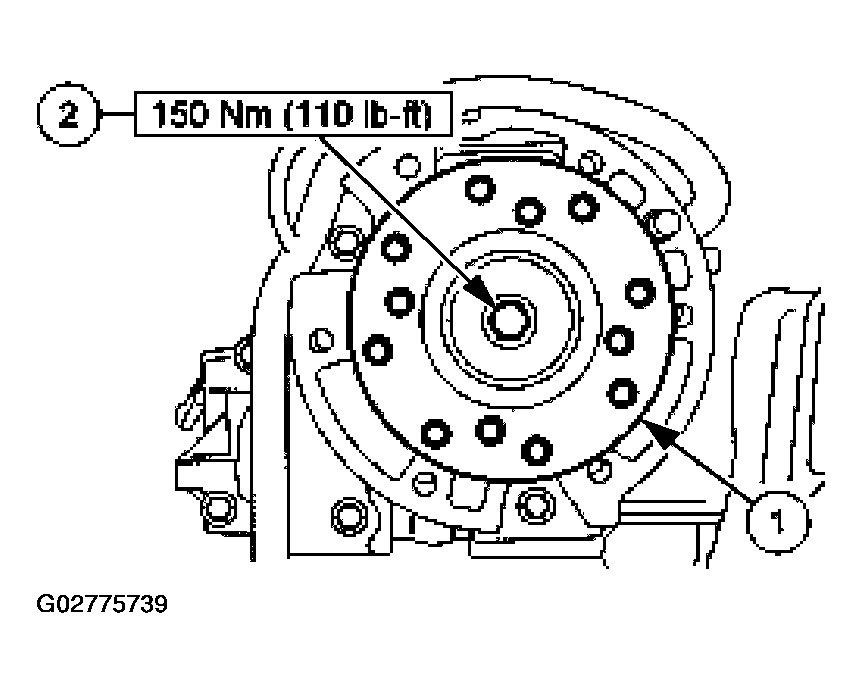

      Fig 10: Installing Output Shaft Flange
      G02775739Courtesy of FORD MOTOR CO.

    4x2 vehicles

  12. Install the rear driveshaft. Refer to DRIVESHAFT .

    4x4 vehicles

  13. Install the transfer case. Refer to TRANSFER CASE .

    All vehicles

  14. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
  15. CAUTION: The use of any other transmission fluid than specified can result in the transmission failing to operate in a normal manner or transmission failure.
  16. With the vehicle in NEUTRAL, engine running and the transmission at normal operating temperature 66-77°C (150-170 °F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24 liter (0.5 pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).
