Forward Planet Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Individual parts of the planet assemblies are not repairable.

Remove the No. 9B forward clutch thrust bearing.

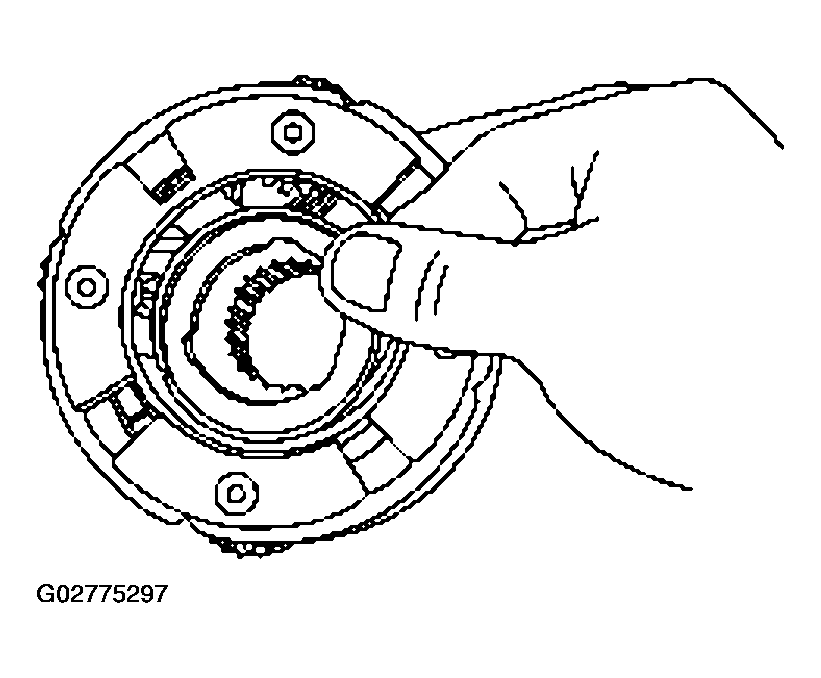

Fig 1: Removing Forward Clutch Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the No. 10A forward planet assembly thrust bearing.
- The pins and shafts in the plant assemblies should be checked for loose fit/damage. Use a new planet assembly if either condition exist.
- Inspect the pinion gears for damaged or excessively worn teeth.
- Check for free rotation of the pinion gears.
- Check for damage in the overdrive planet assembly.

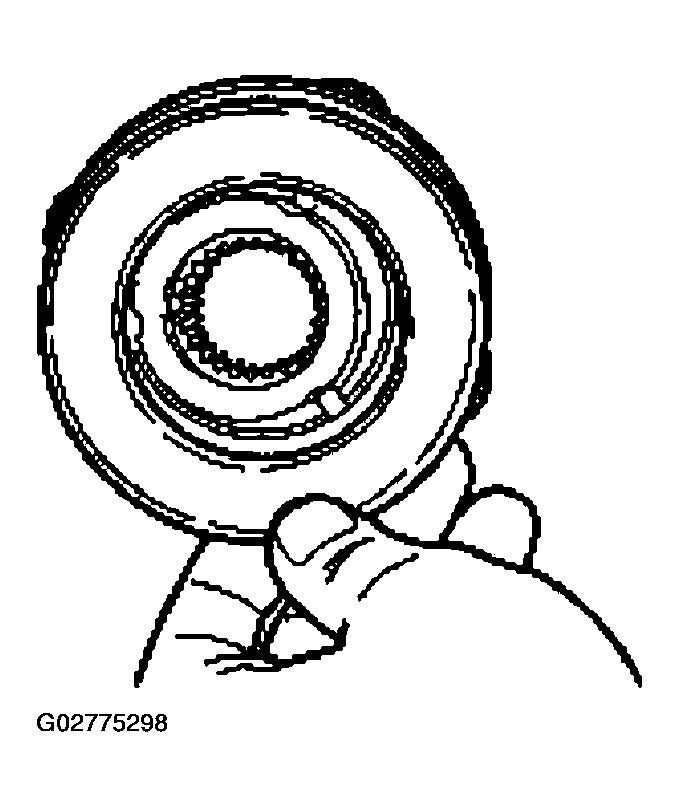

  Fig 2: Inspecting Pinion Gears For Damaged Or Excessively Worn Teeth
  Courtesy of FORD MOTOR CO.
