Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Transmission Vehicle Harness Connector  illustration preceding these pinpoint tests.
NOTE: This vehicle is equipped with a transmission fluid temperature gauge in the dash. The transmission fluid temperature gauge may be used as a quick reference to the operating temperature. It should not be used as a diagnostic tool to tell the temperature of the transmission. The WDS, NGS or transmission tester should be used to obtain the actual temperature of the transmission.
Fig 1: Pinpoint Test B: Shift Solenoids Step B1-B3
G02774821Courtesy of FORD MOTOR CO.

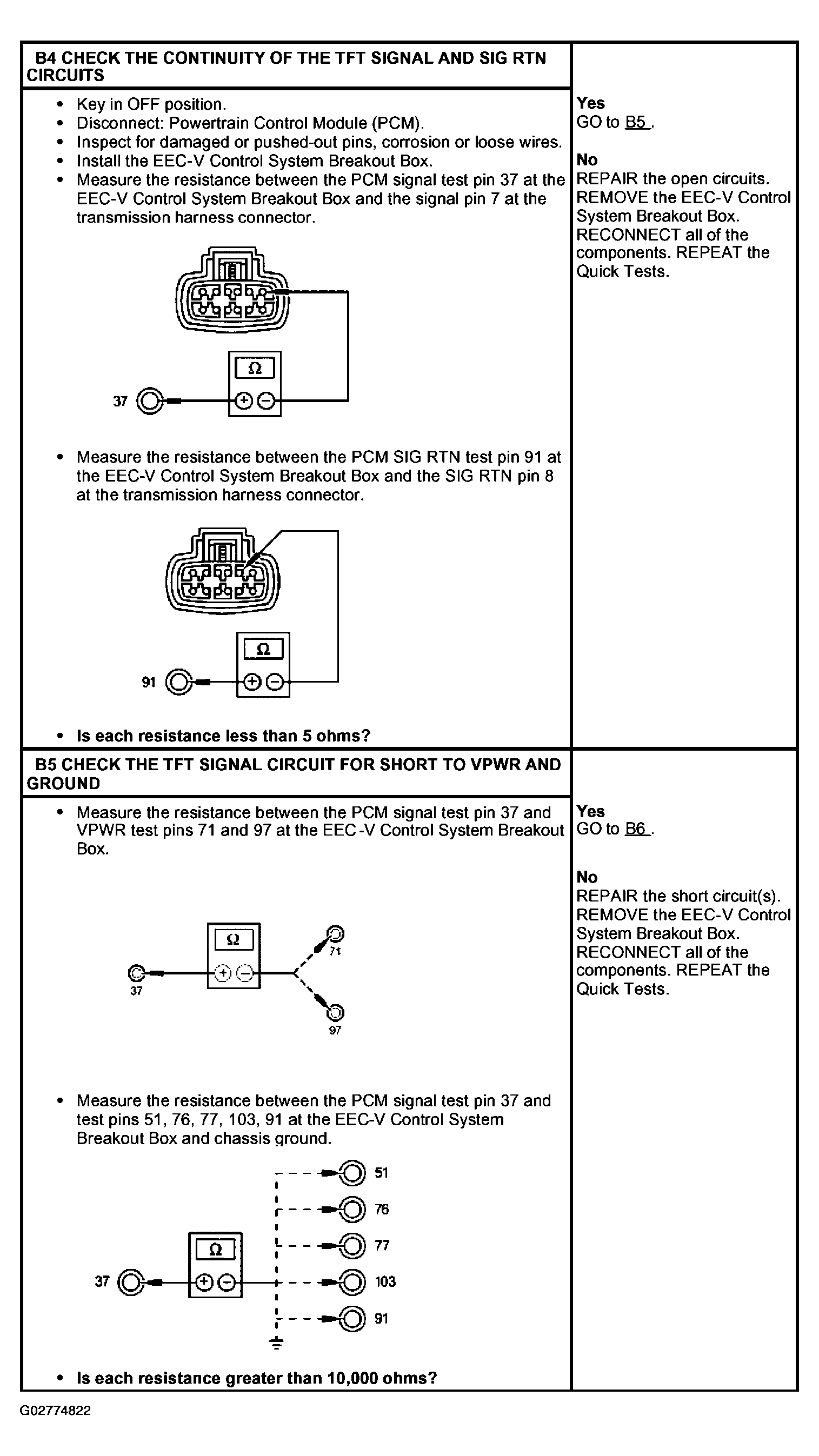

Fig 2: Pinpoint Test B: Shift Solenoids Step B4-B5
G02774822Courtesy of FORD MOTOR CO.

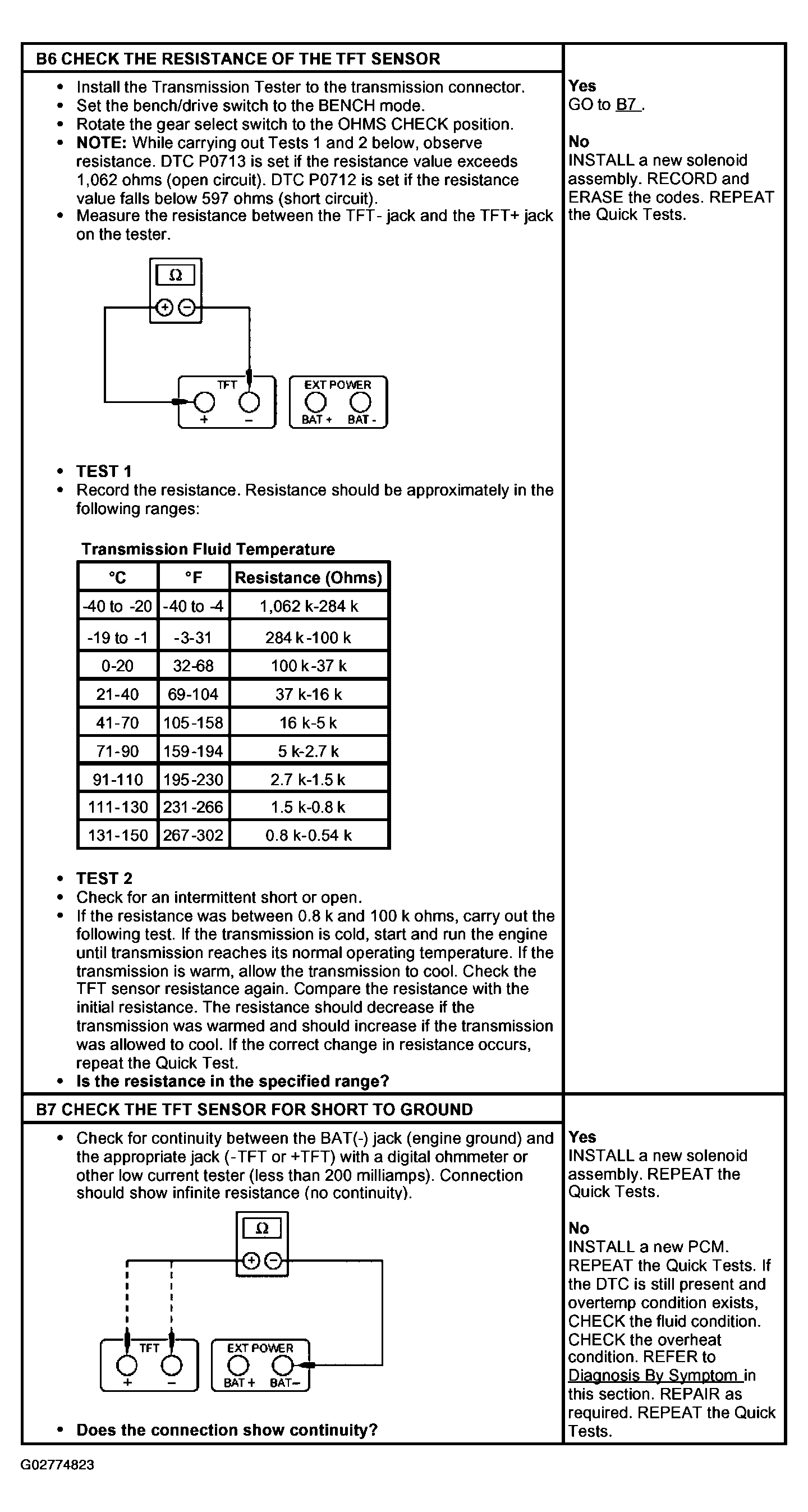

Fig 3: Pinpoint Test B: Shift Solenoids Step B6-B7
G02774823Courtesy of FORD MOTOR CO.
