Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the turbocharger inlet tube. Refer to FUEL CHARGING & CONTROLS - TURBOCHARGER .
  2. Disconnect the engine oil pressure (EOP) sensor electrical connector.

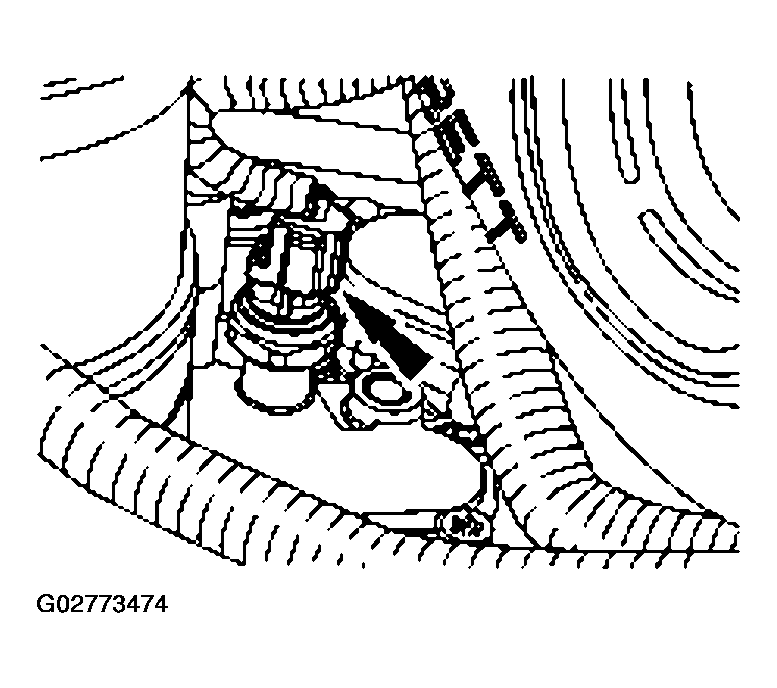

    Fig 1: Disconnecting Engine Oil Pressure (EOP) Sensor Electrical Connector
    G02773474Courtesy of FORD MOTOR CO.
  3. Remove the EOP sensor.

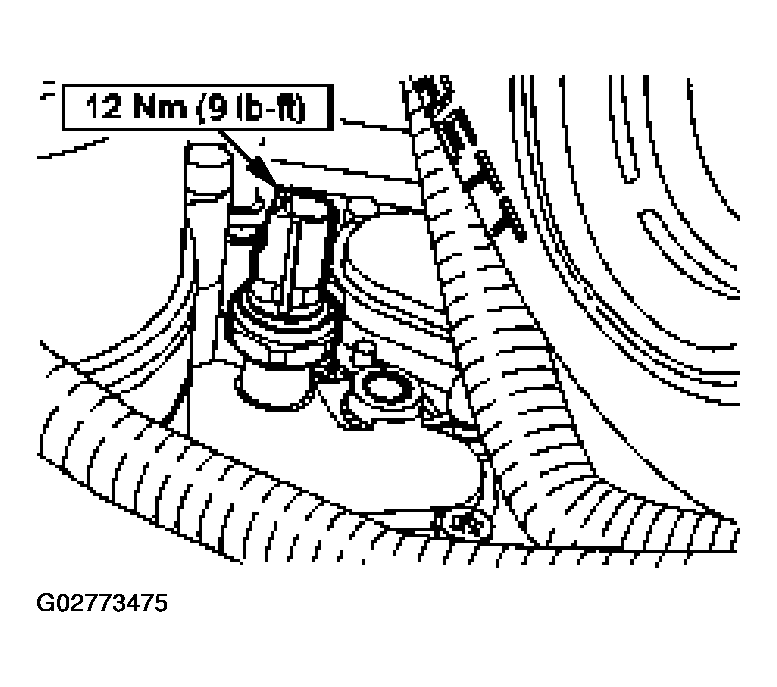

    Fig 2: Removing EOP Sensor With Torque Specifications
    G02773475Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
