Pressure Regulator: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is not running.
WARNING: Before working on or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved.
  1. Perform pre-service procedures. Refer to FUEL SYSTEM-GENERAL INFORMATION - GASOLINE & DIESEL .
  2. Disconnect the battery ground cable.
  3. Remove the pressure regulator.
    1. Disconnect the vacuum hose.
    2. Remove the retaining clip.
    3. Remove the pressure regulator.

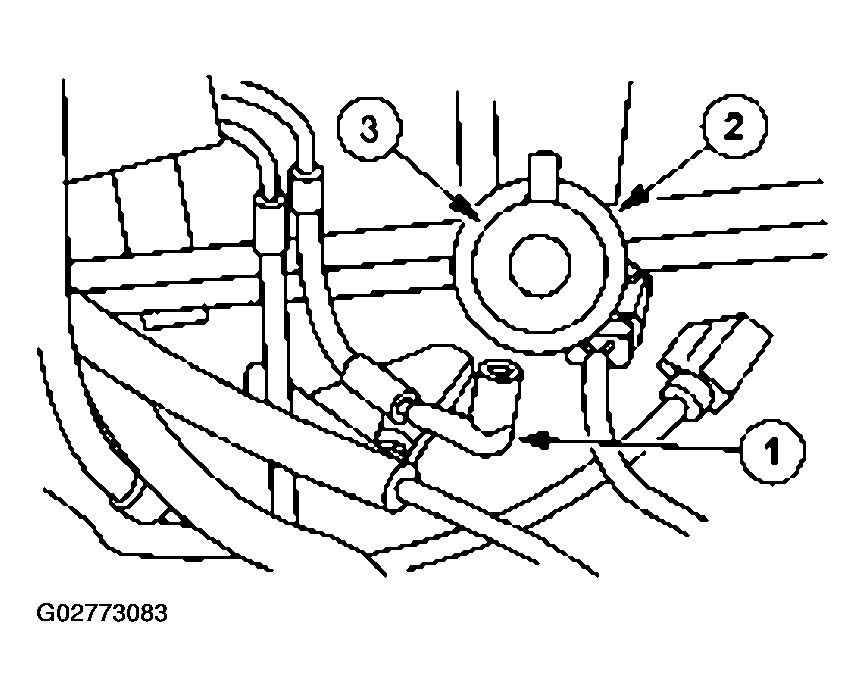

    Fig 1: Removing Pressure Regulator
    G02773083Courtesy of FORD MOTOR CO.
  4. Remove pressure regulator. Discard the O-ring seals.
