Oil Pump: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the engine front cover and crankshaft sprockets. Refer to TIMING DRIVE COMPONENTS .
  3. Remove the oil pan. Refer to OIL PAN - AUTOMATED EQUIPMENT  or OIL PAN - MANUAL TRANSMISSION .
  4. Remove the oil pump.
    • Remove the bolts.
    • Remove the oil pump.

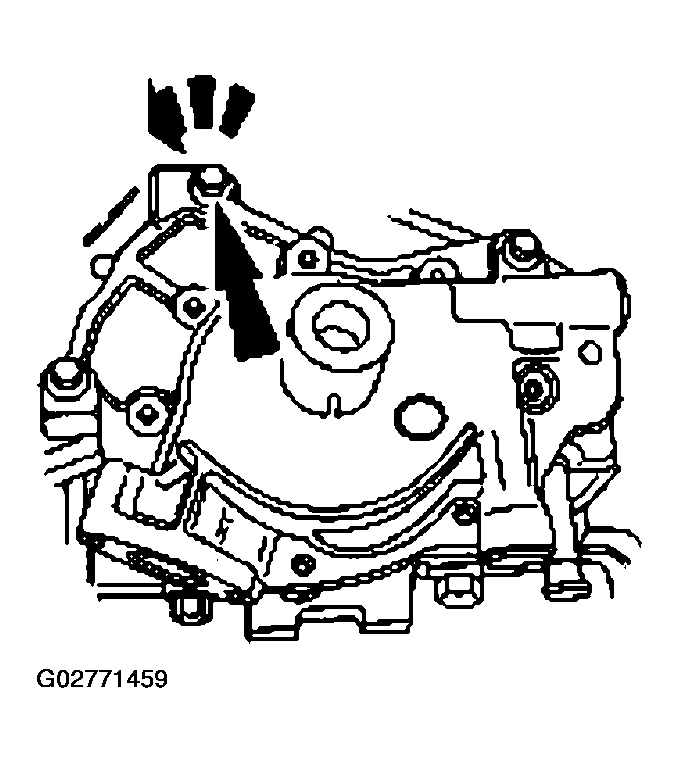

      Fig 1: Removing Oil Pump
      G02771459Courtesy of FORD MOTOR CO.
