Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: While repairing the power steering system, care should be taken to prevent the entry of contaminants or premature failure of the power steering components can result.
  1. Unclamp and disconnect the hoses.
    • Drain the fluid into a suitable container.
    Fig 1: Disconnecting Hoses
    G02769993Courtesy of FORD MOTOR CO.
  2. Remove the two bolts and the cooler.

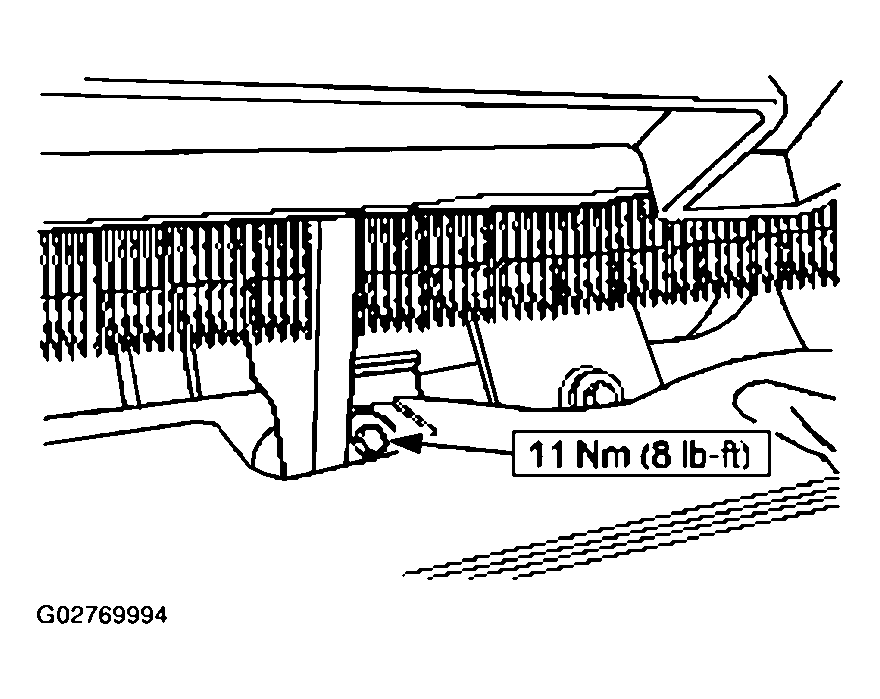

    Fig 2: Removing Two Bolts And Cooler
    G02769994Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
    • If a new cooler is being installed, install the hoses on the new cooler.
