Axle Shaft Seal: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Remove the front brake disc. Refer to DISC
  3. Remove the wheel hub and bearing. Refer to WHEELS & TIRES .
  4. Using a drift, drive the axle shaft main seal out of the wheel knuckle.

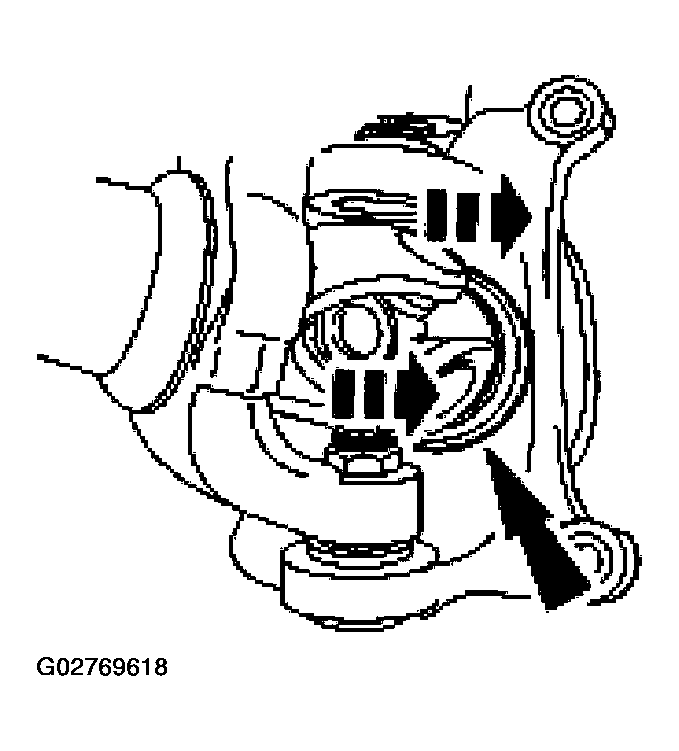

    Fig 1: Removing Axle Shaft Main Seal From Wheel Knuckle
    G02769618Courtesy of FORD MOTOR CO.
  5. Remove the axle shaft and main seal.
    Fig 2: Removing Axle Shaft And Main Seal
    G02769619Courtesy of FORD MOTOR CO.
  6. Remove the axle shaft seal.
    Fig 3: Removing Axle Shaft Seal
    G02769620Courtesy of FORD MOTOR CO.
