Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown; LH similar.

Remove the rear lamp screws.

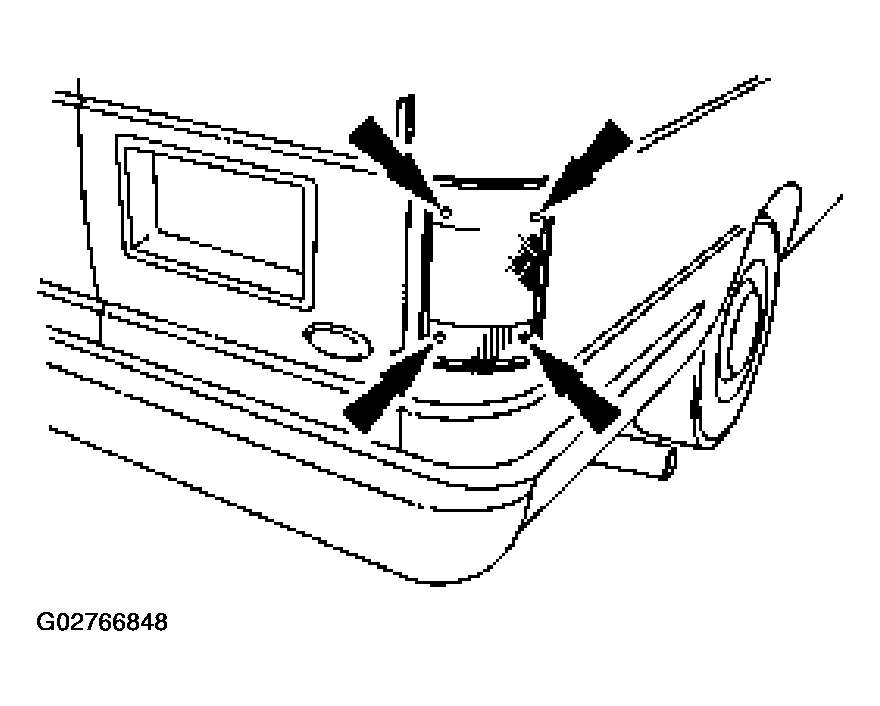

Fig 1: Removing Rear Lamp Screws
Courtesy of FORD MOTOR CO.
Pull the rear lamp forward.

Fig 2: Pulling Rear Lamp Forward
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors.
To install, reverse the removal procedure.
