Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown; LH similar.

NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.

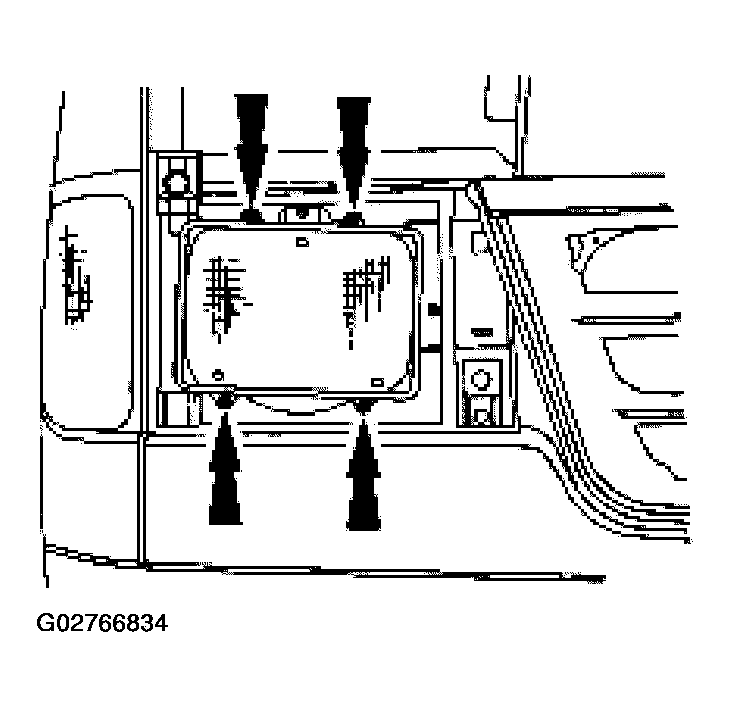

Fig 1: Removing The Headlamp Door Screws

Courtesy of FORD MOTOR CO.

Remove the headlamp door screws and remove the headlamp door.
Remove the screws and remove the retaining ring.

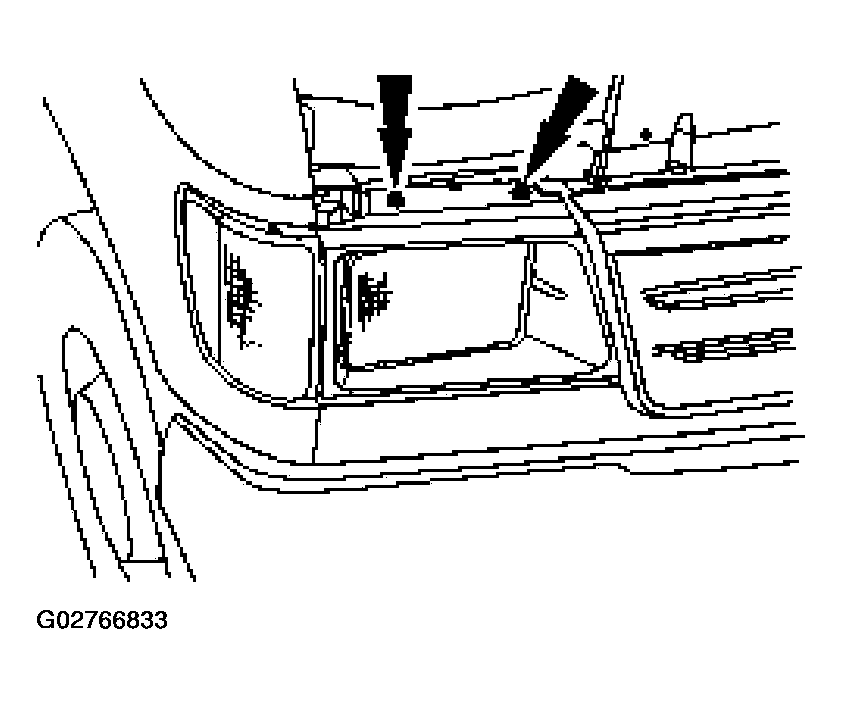

Fig 2: Removing The Screws Retaining Ring
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector and remove the headlamp.

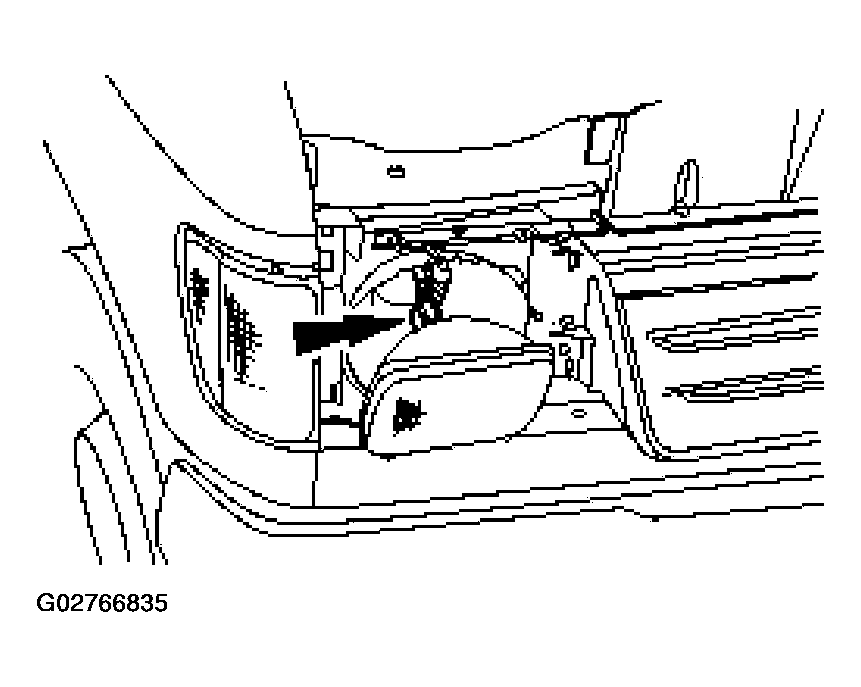

Fig 3: Disconnecting The Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- If necessary, adjust the headlamps. For additional information, refer to HEADLAMP ADJUSTMENT .
