Battery Cables - Auxiliary, Gasoline: Removal
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Disable the vehicle electrical supply. For additional information, refer to DUAL BATTERY DISCONNECT .
- Disconnect the primary battery positive cable, and remove the hold-down wedge and the primary battery (10655). Remove the auxiliary battery.
- Remove the four bolts retaining the battery tray and remove the battery tray.

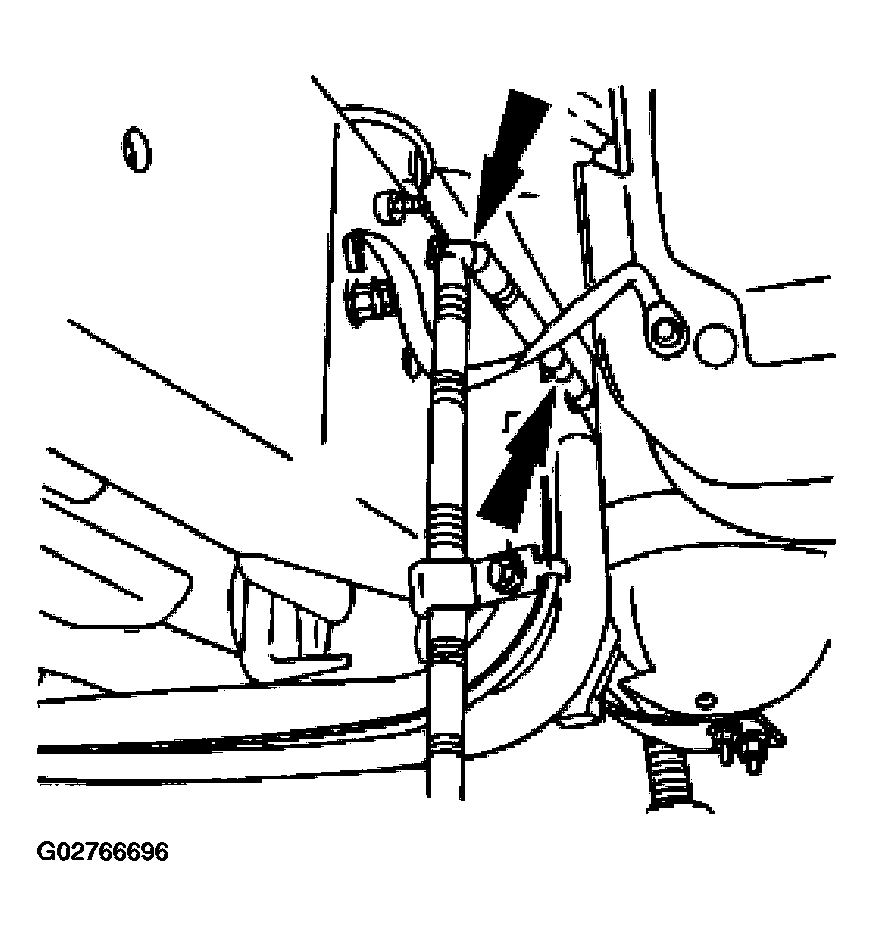

- Remove three rear harness locators, two to the rear of the vacuum reservoir and one to the front of the vacuum reservoir, along the RH frame rail.
- Pull the harness through the vacuum reservoir and the frame.

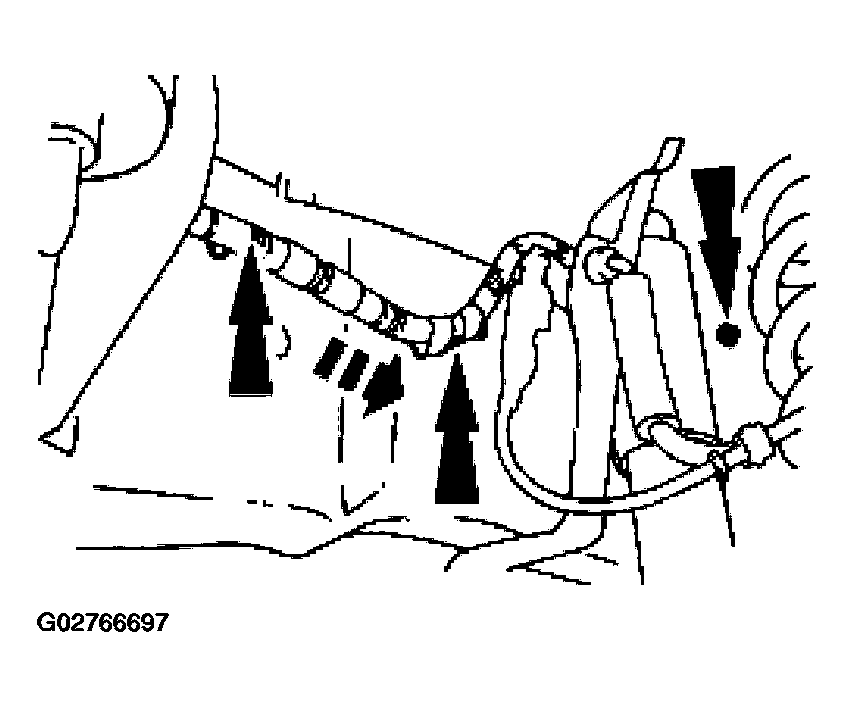

- Remove three front harness locators, along the RH frame rail, and pull the harness through the front body mounting point.

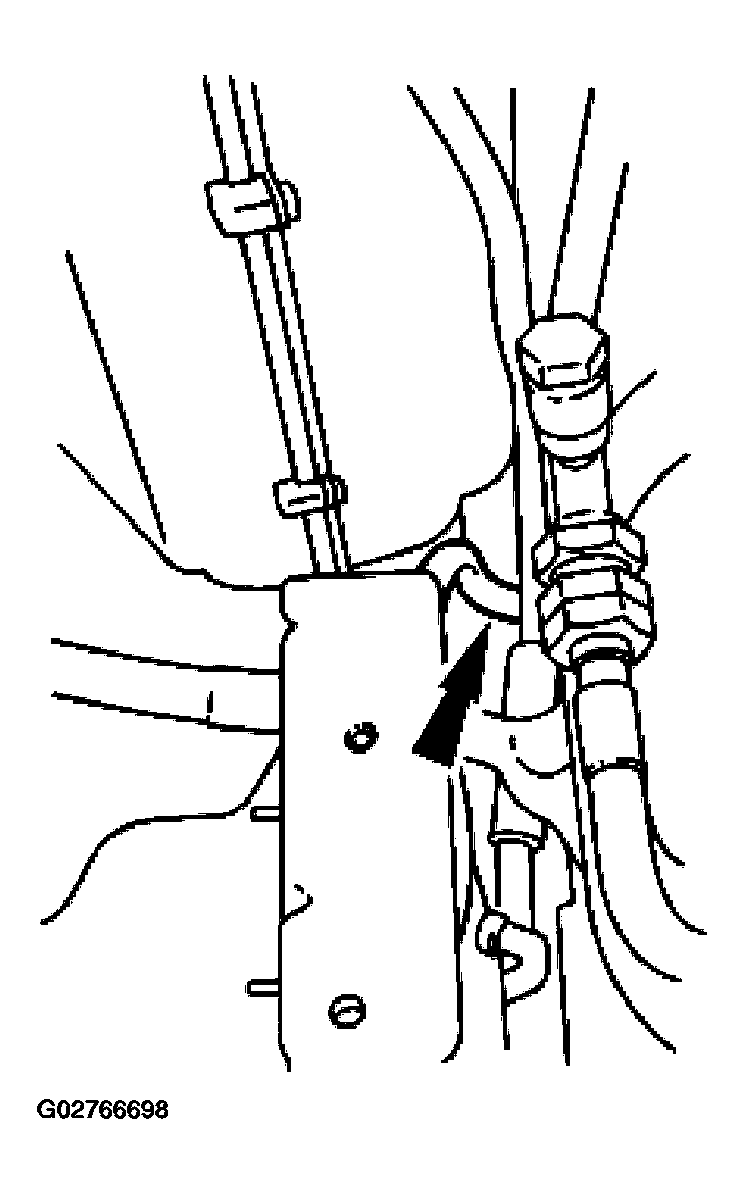

- Remove the engine compartment harness locator.

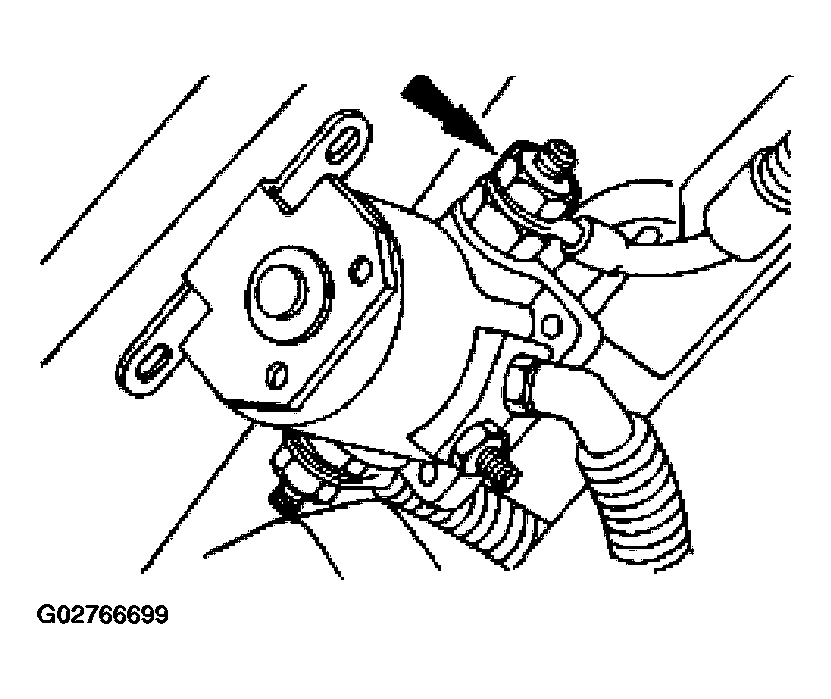

- Remove the nut and disengage the harness eyelet.
- Pull the harness out from the engine compartment.
CAUTION:
Failure to accurately follow the battery disconnect procedures outlined will result in vehicle or component damage.
