Connect - Vehicles with 4.6L, 5.4L and 6.8L engines

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reconnect the auxiliary battery frame ground.
    Fig 1: Reconnecting Auxiliary Battery Frame Ground
    G02766668Courtesy of FORD MOTOR CO.
  2. Reconnect the primary battery ground cable.

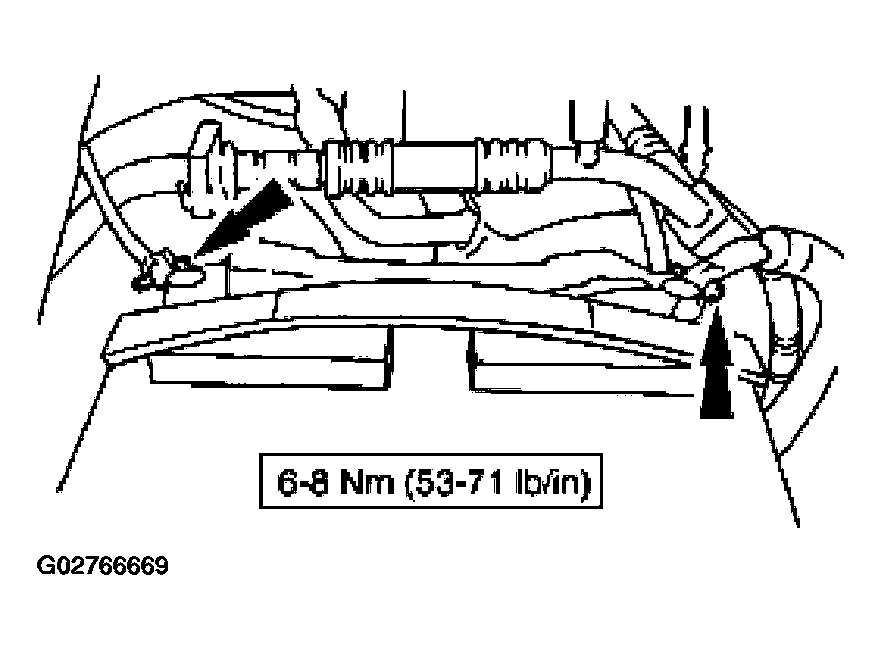

    Fig 2: Reconnecting Primary Battery Ground Cable
    G02766669Courtesy of FORD MOTOR CO.
