Pinpoint Test I: The Safety Belt Warning Indicator Is Inoperative

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

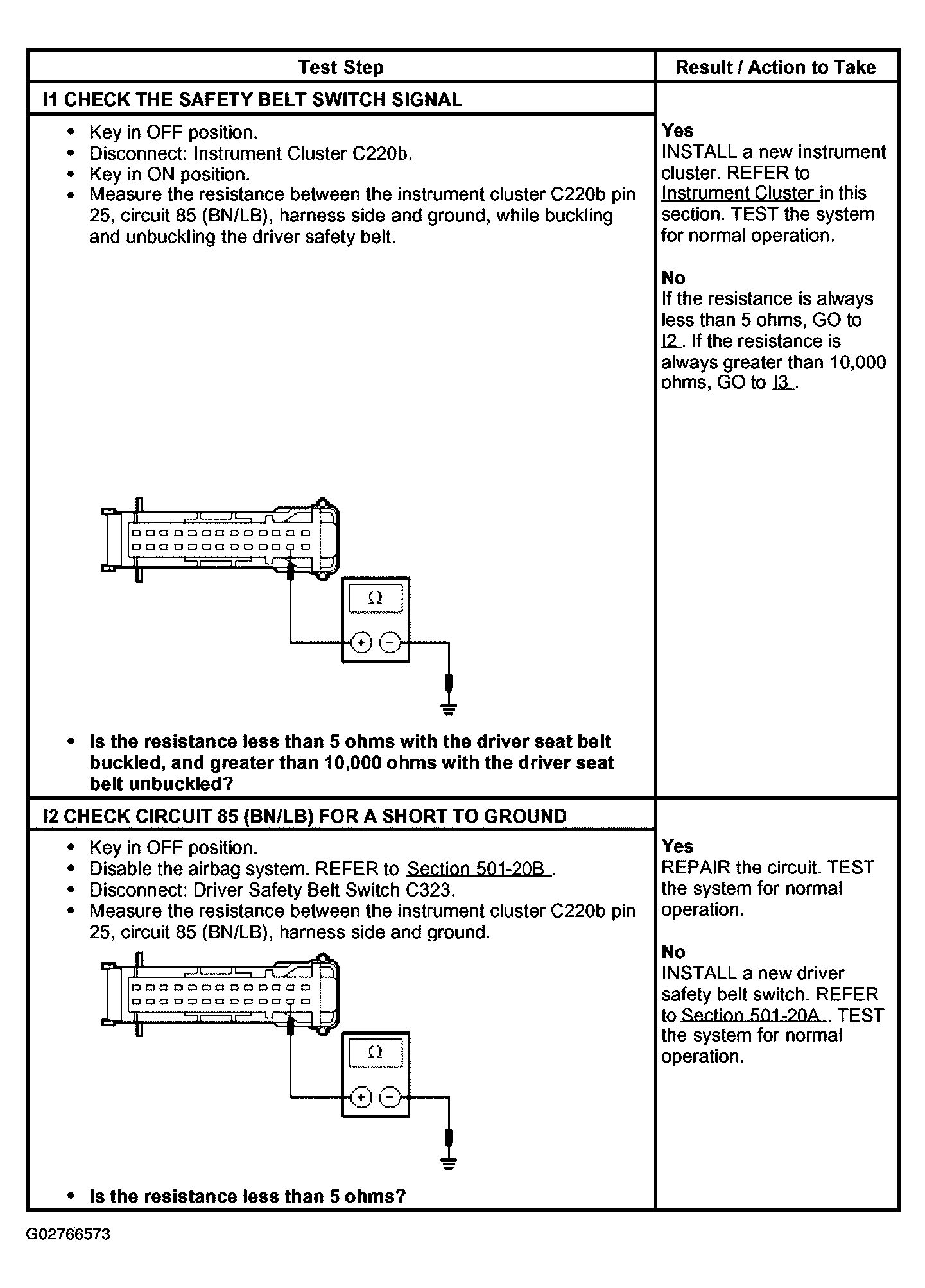

Fig 1: Pinpoint Test I: The Safety Belt Warning Indicator Is Inoperative (Steps I1-I2)
G02766573Courtesy of FORD MOTOR CO.

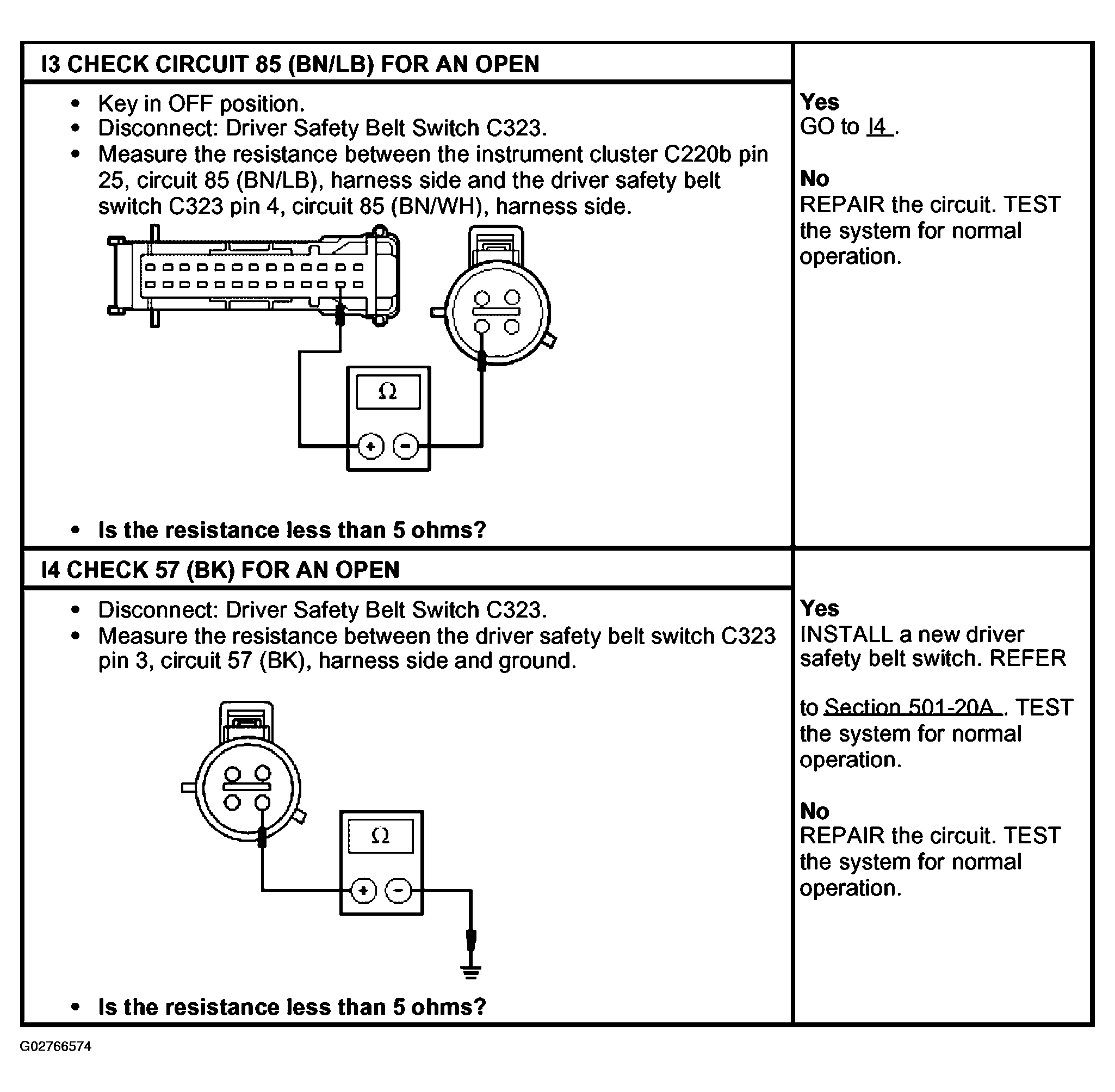

Fig 2: Pinpoint Test I: The Safety Belt Warning Indicator Is Inoperative (Steps I3-I4)
G02766574Courtesy of FORD MOTOR CO.
