Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    4.6L, 5.4L And 6.8L Vehicles

  1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the battery.

    3. ALL VEHICLES

  3. Disconnect the A/C cycling switch connector.

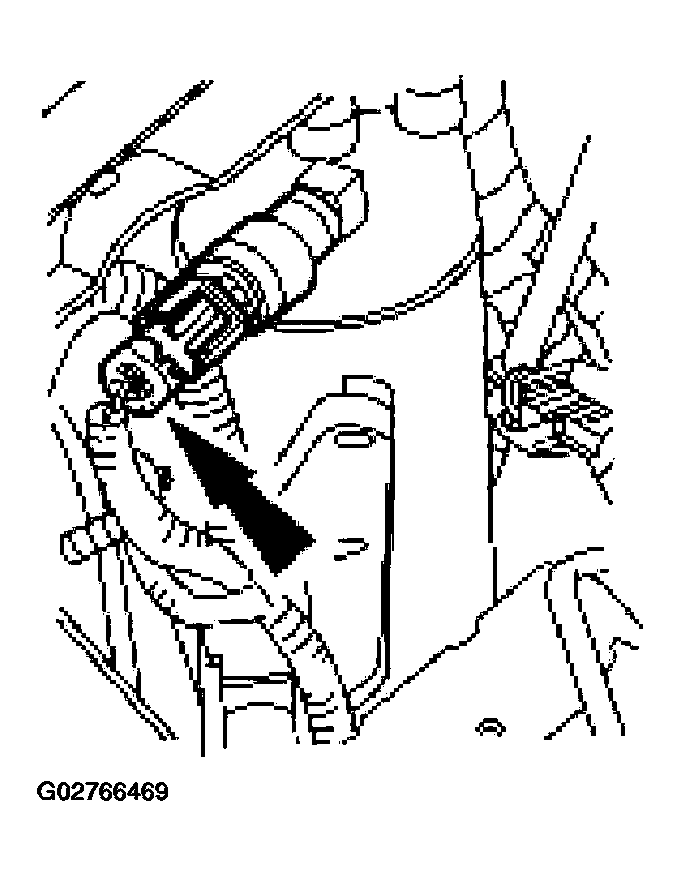

    Fig 1: Disconnecting A/C Cycling Switch Connector
    G02766469Courtesy of FORD MOTOR CO.
  4. Remove the A/C cycling switch (19E561) from the top of the suction accumulator/drier (19C836).
    Fig 2: Removing A/C Cycling Switch
    G02766470Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
    • Install a new O-ring seal lubricated in clean mineral oil.
    Fig 3: Installing New O-Ring Seal
    G02766471Courtesy of FORD MOTOR CO.
