Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Carry out the Pressure Relief - Fuel Tube Venting Procedure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .
Disconnect the low-pressure fuel tube and the fuel pressure regulator coolant hoses.
1. Pinch off the coolant hoses 76 mm (3 inches) from the fuel pressure regulator.
2. Disconnect the fuel pressure regulator coolant hoses.
3. Disconnect the low-pressure fuel tube from the fuel pressure regulator.

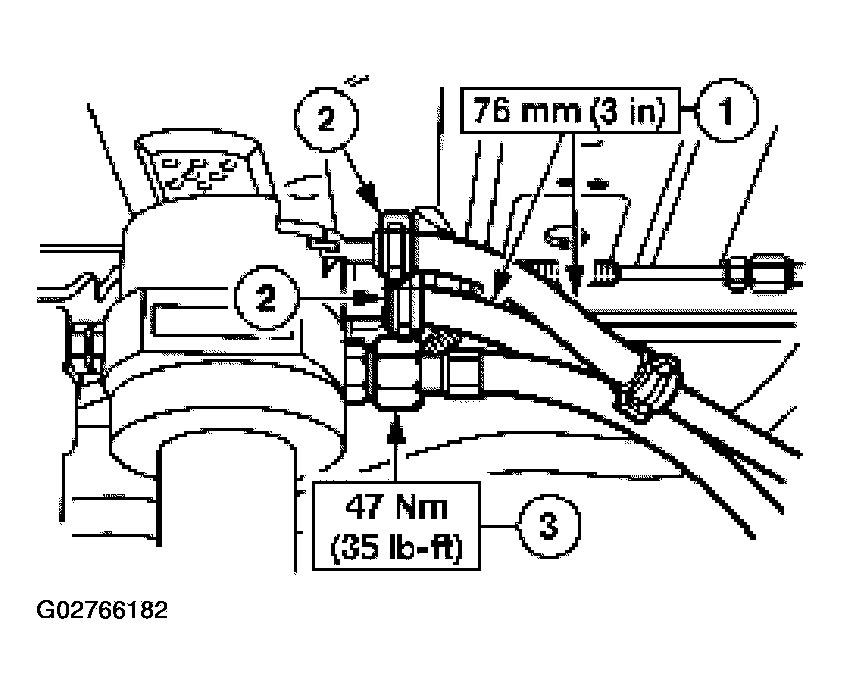

Fig 1: Disconnecting Low-Pressure Fuel Tube And Fuel Pressure Regulator Coolant Hoses
Courtesy of FORD MOTOR CO.
Remove the fuel tube clamp bolt.

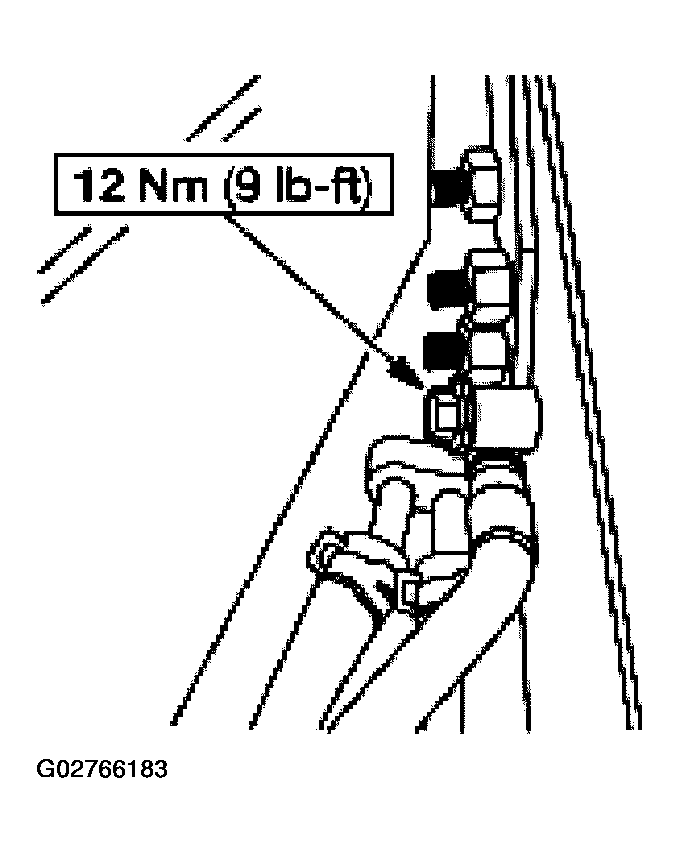

Fig 2: Removing Fuel Tube Clamp Bolt
Courtesy of FORD MOTOR CO.
Disconnect the fuel pressure regulator coolant hoses.

Fig 3: Disconnecting Fuel Pressure Regulator Coolant Hoses
Courtesy of FORD MOTOR CO.
Remove the fuel tube tether clamp.

Fig 4: Removing Fuel Tube Tether Clamp
Courtesy of FORD MOTOR CO.
Using the special tool, disconnect the fuel supply tube from the fuel injection supply manifold. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .

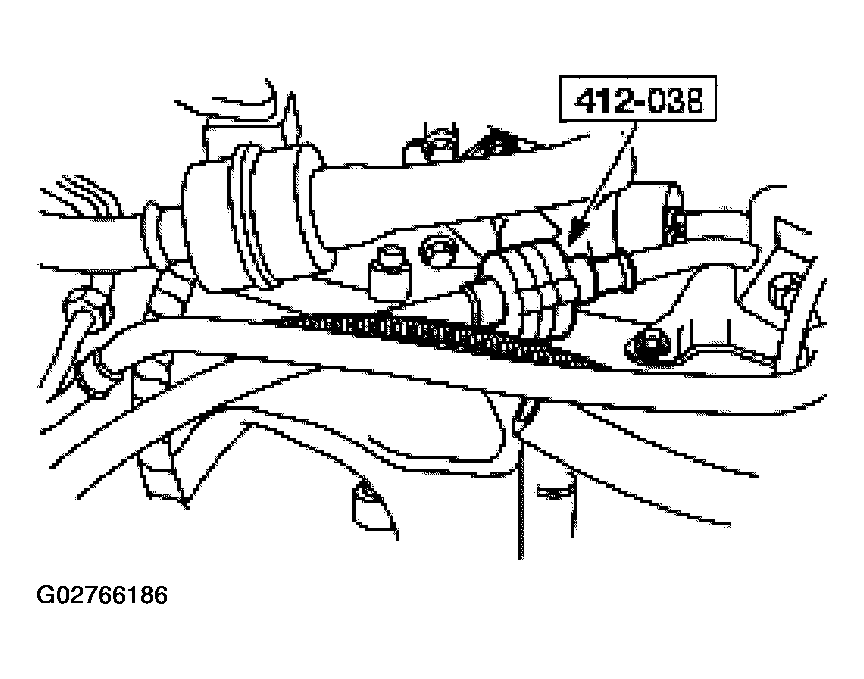

Fig 5: Disconnecting Fuel Supply Tube From Fuel Injection Supply Manifold
Courtesy of FORD MOTOR CO.
Remove and discard the two fuel tube O-rings.

Fig 6: Removing Fuel Tube O-Rings
Courtesy of FORD MOTOR CO.

NOTE: Replace the fuel tube O-ring seals.

NOTE: Lubricate the fuel tube O-ring seals with clean engine oil prior to installation.

NOTE: When tightening the fuel tubes, a torque wrench adapter must be used with the torque wrench. The use of a torque wrench adapter will alter the effective torque wrench being used. To correct the effective torque, a torque multiplication conversion must be used. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .

To install, reverse the removal procedure.
