Transmission Fluid Cooler Tubes - 4R100 Transmission: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. If not done previously, carry out the transmission fluid cooler flow test procedure. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION-4R100 .
    3. NOTE: If cooler bypass valve (CBV) assembly (7H322) removal is necessary, refer to COOLER BYPASS VALVE - 4R100 TRANSMISSION .

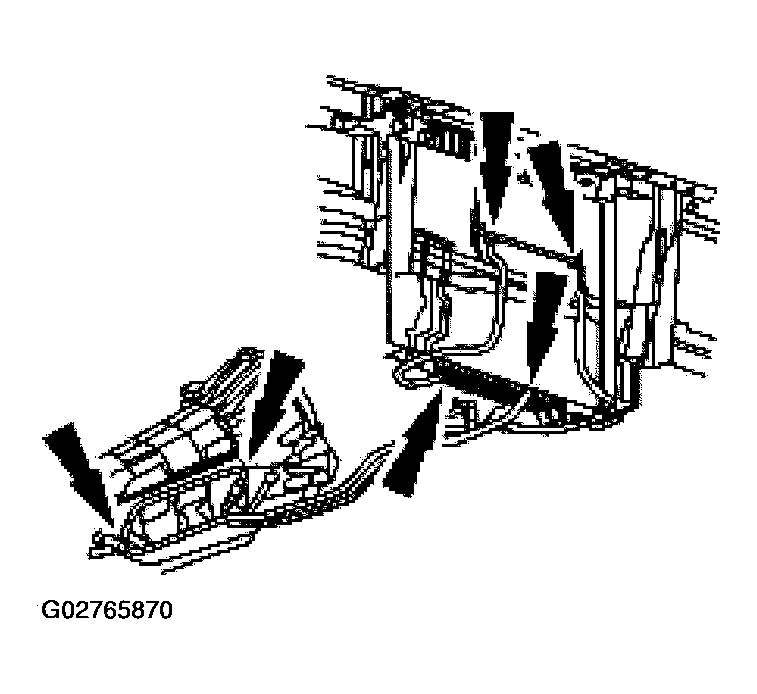

    Fig 1: Removing Fluid Cooler Tube
    G02765870Courtesy of FORD MOTOR CO.
  3. Remove the fluid cooler tube(s)/hose(s), as necessary.
