Transmission Fluid Cooler Tubes - 4R100 Transmission: Installation
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

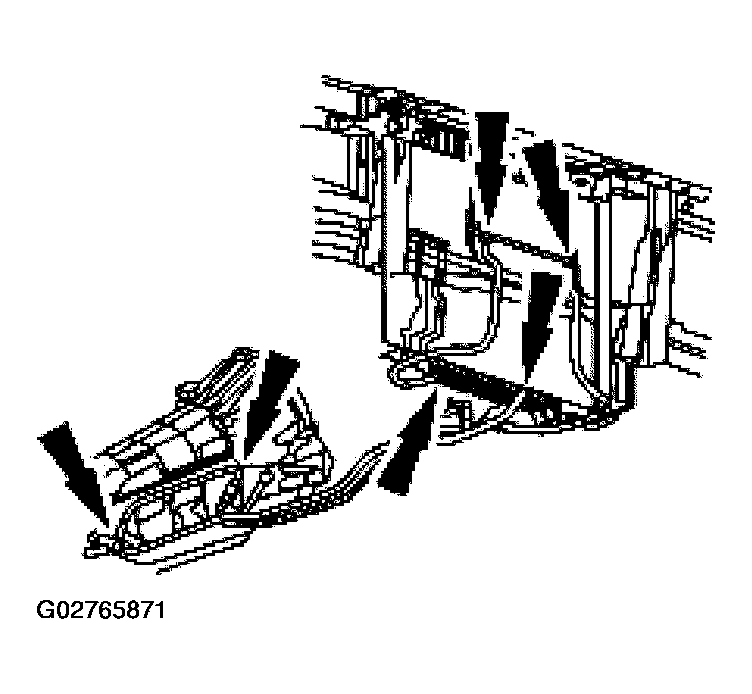

- Install the fluid cooler tube(s)/hose(s).

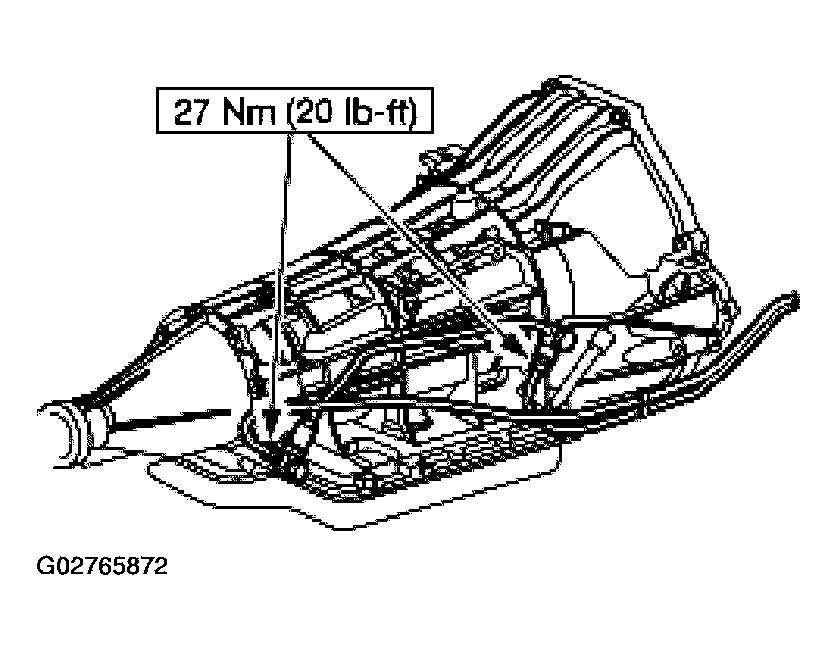

- Tighten the cooler tube fitting(s).
- Fill the transmission with the specified type and quantity of clean transmission fluid. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION-4R100 .
- Check for leaks.
NOTE:
If the CBV assembly was removed, refer to COOLER BYPASS VALVE - 4R100 TRANSMISSION for the installation procedure.
CAUTION:
Do not use any fluid approved for MERCON® V application. Using a fluid rated for MERCON® V may cause internal damage in MERCON® only applications.
