Reverse Clutch Disassembled View

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

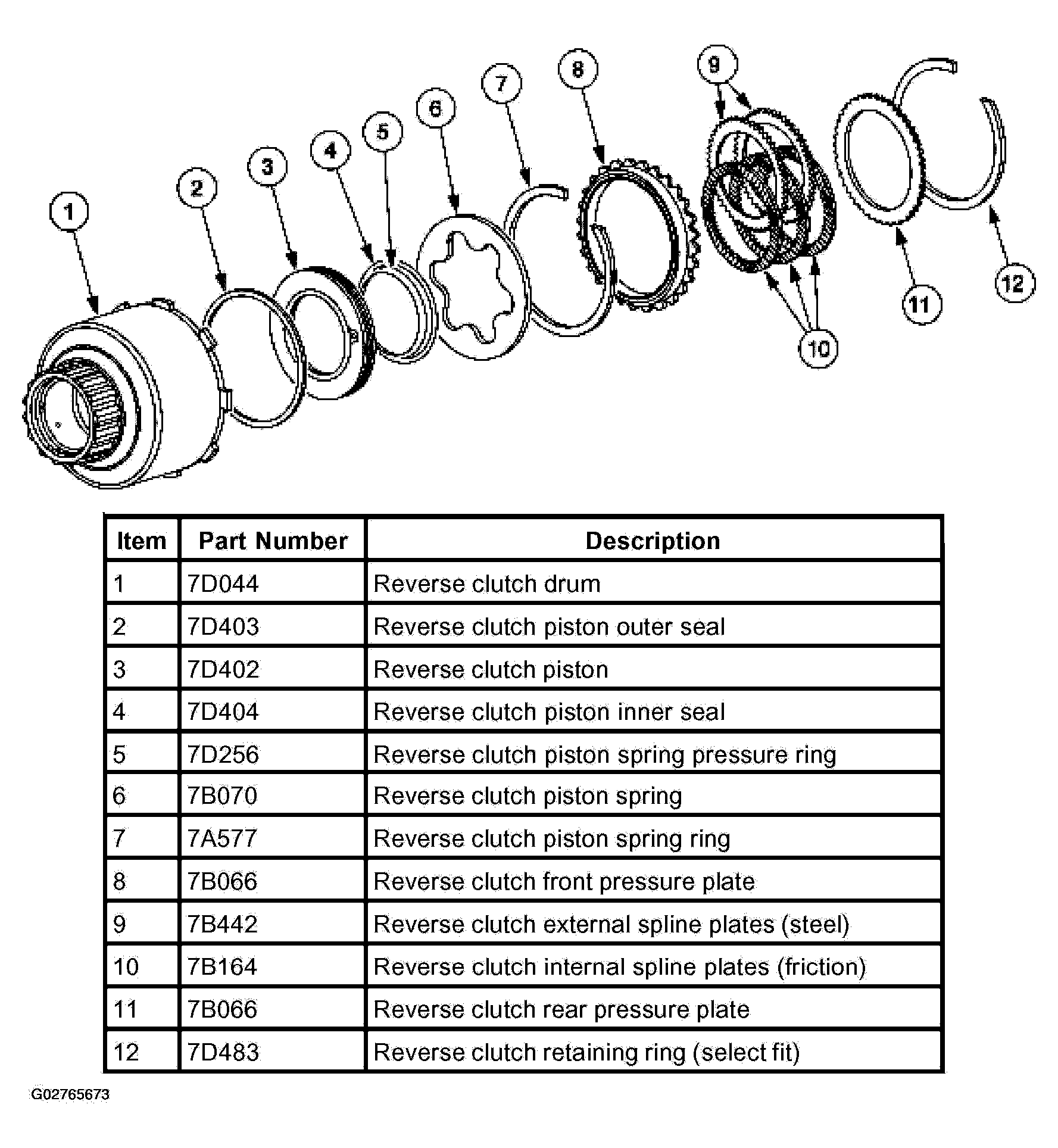

Fig 1: Disassembling View Of Reverse Clutch
G02765673Courtesy of FORD MOTOR CO.
