Pinpoint Test A: Shift And Torque Converter Clutch Solenoids

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Read and record all DTCs. All digital TR Sensor and VSS DTCs must be repaired before entering Output State Control (OSC).

NOTE: Refer to the Transmission Internal Harness illustration preceding these pinpoint tests.

NOTE: Refer to the Transmission Vehicle Harness Connector illustration preceding these pinpoint tests.

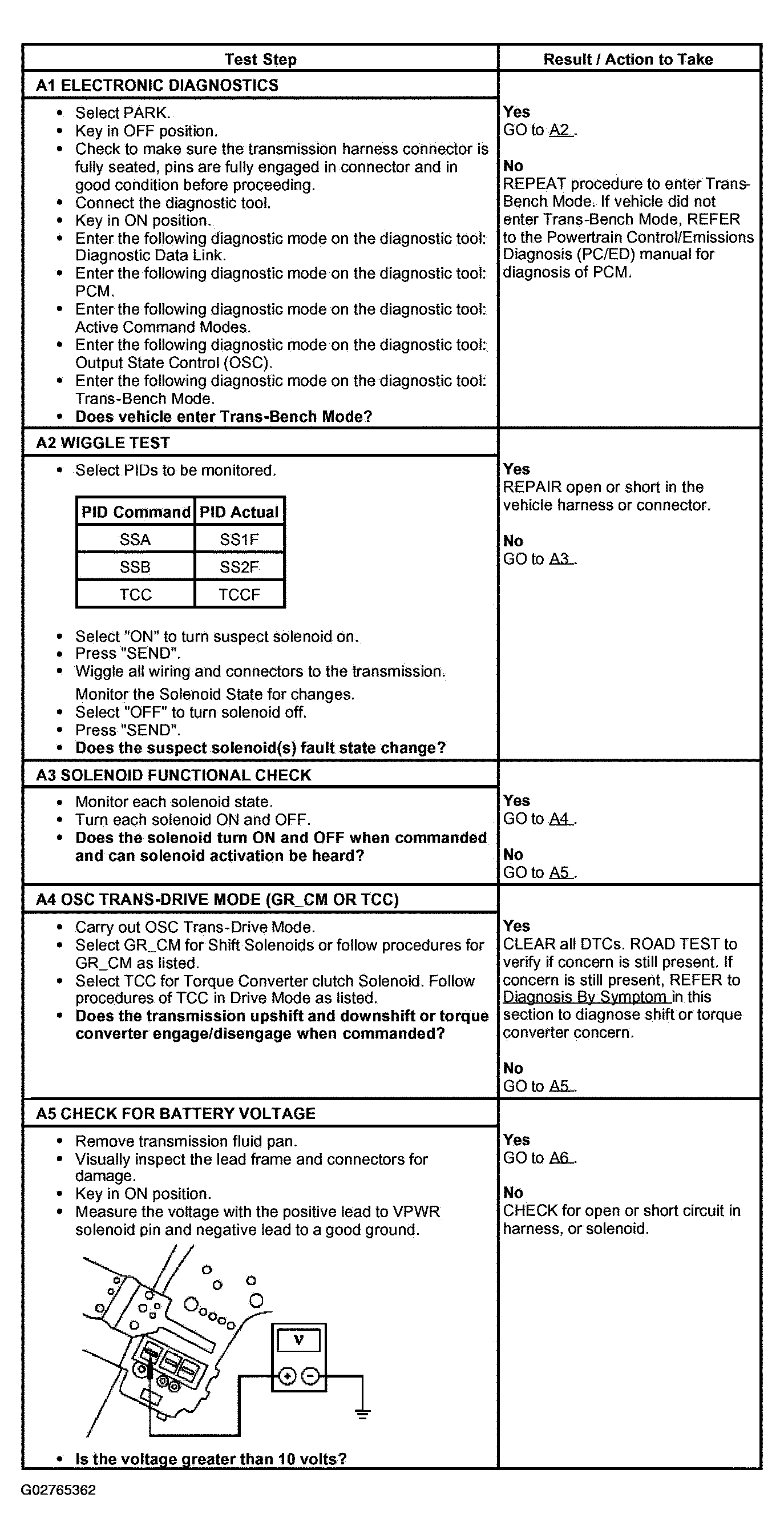

Fig 1: Pinpoint Test A: Shift And Torque Converter Clutch Solenoids (Steps A1-A5)

Courtesy of FORD MOTOR CO.

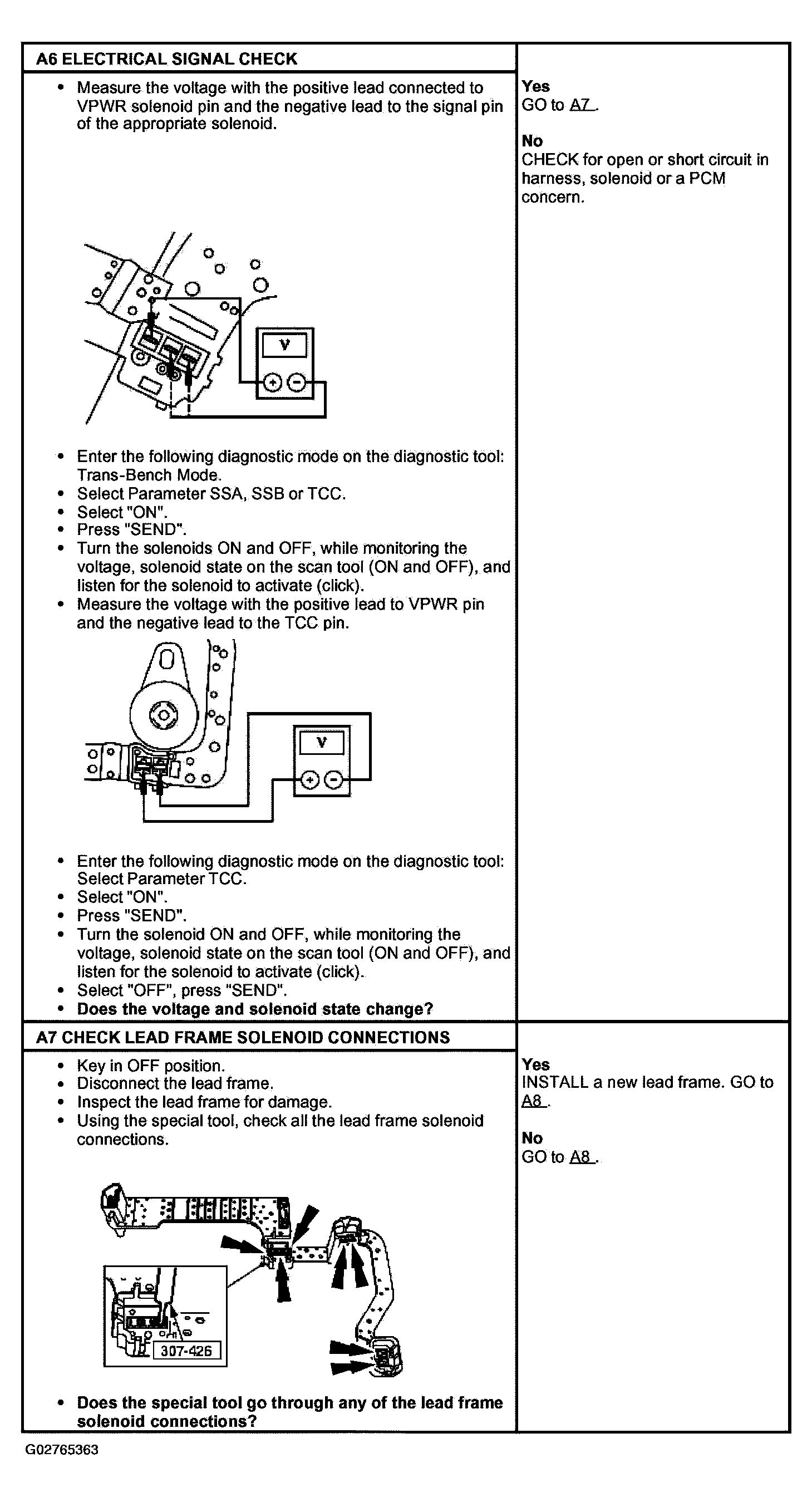

Fig 2: Pinpoint Test A: Shift And Torque Converter Clutch Solenoids (Steps A6-A7)

Courtesy of FORD MOTOR CO.

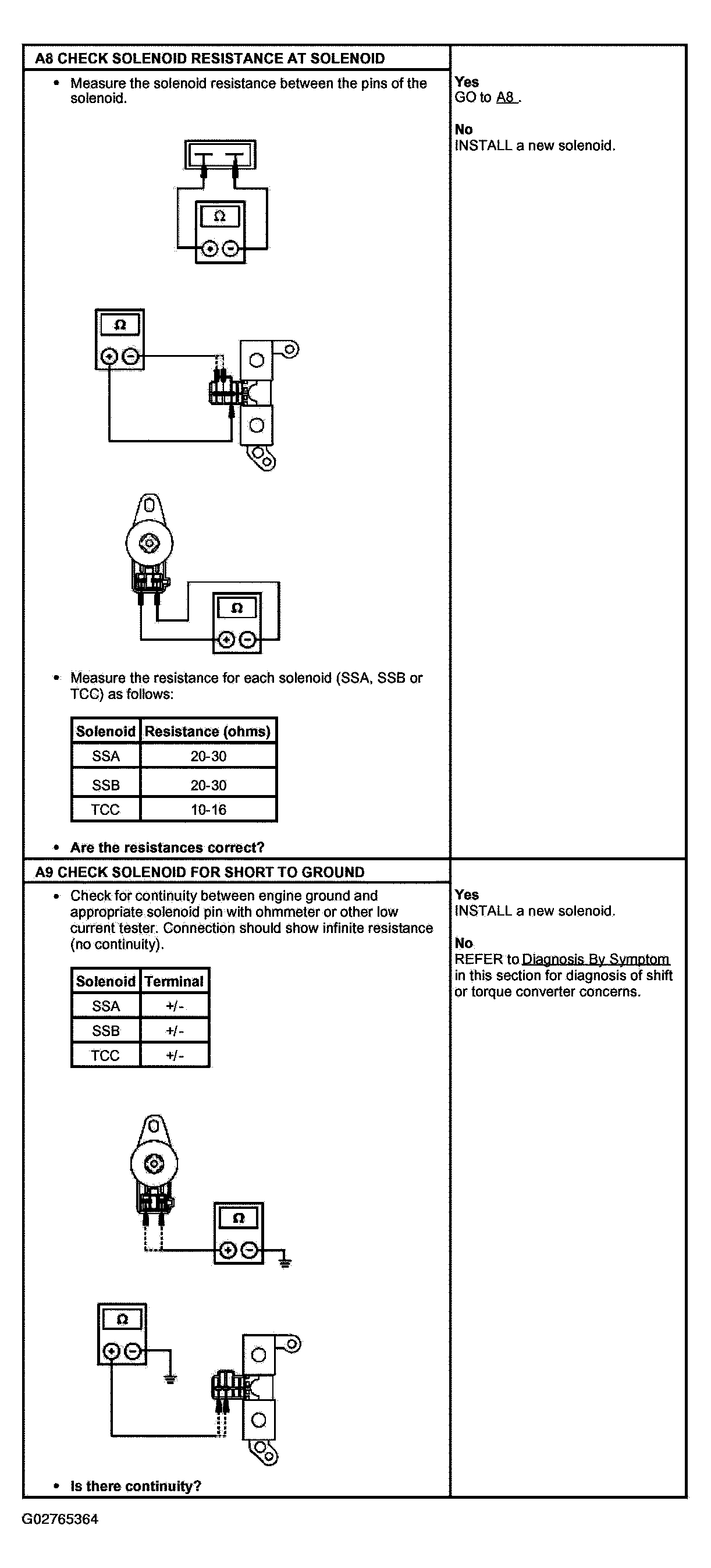

Fig 3: Pinpoint Test A: Shift And Torque Converter Clutch Solenoids (Steps A8-A9)

Courtesy of FORD MOTOR CO.
