Direct Clutch Assembly & Intermediate Brake Drum, Disassembled View

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

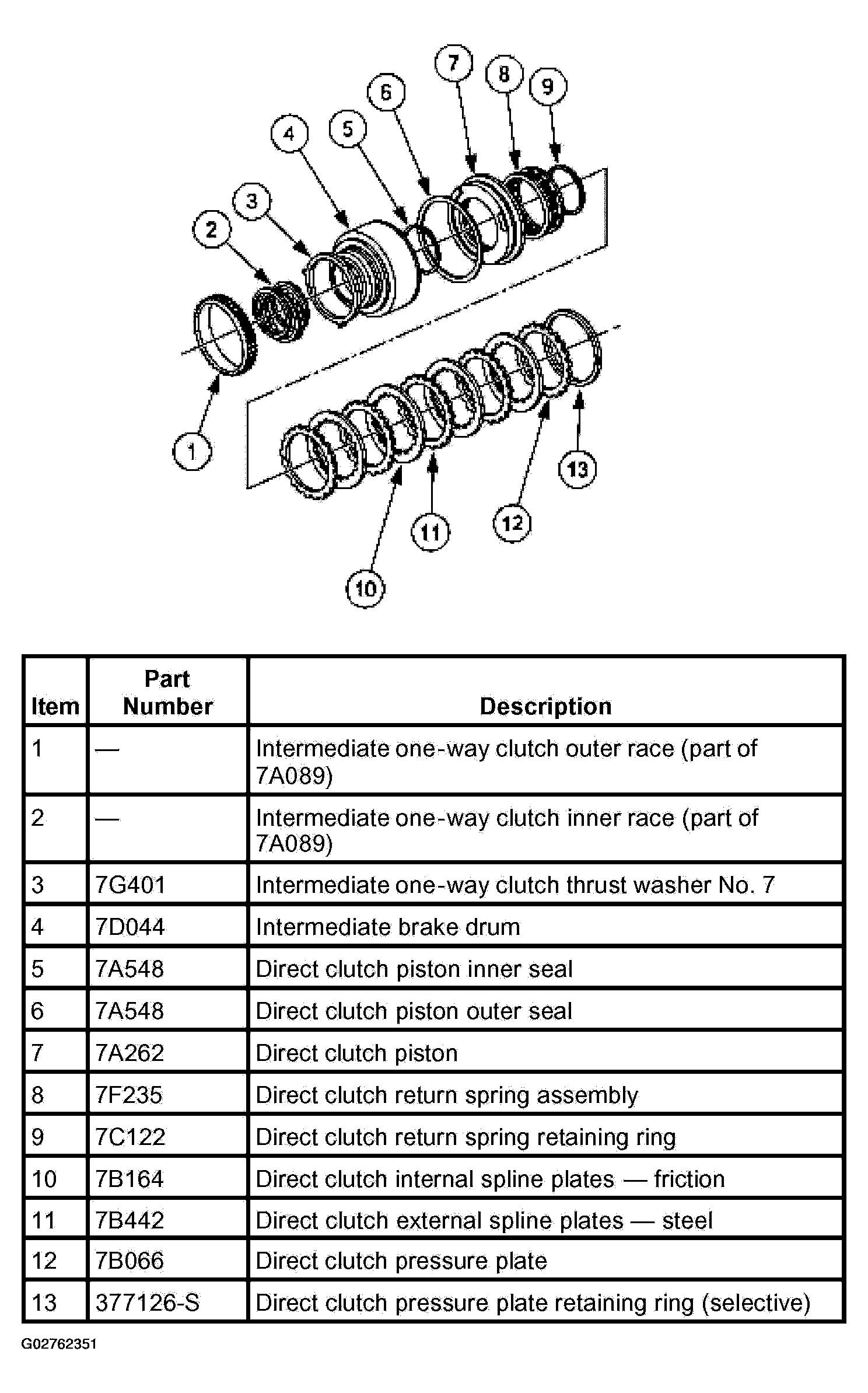

Fig 1: Disassembled View Direct Clutch Assembly And Intermediate Brake Drum
G02762351Courtesy of FORD MOTOR CO.
