WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Repair all other DTCs before repairing the following DTCs: P1714, P1715, P1740

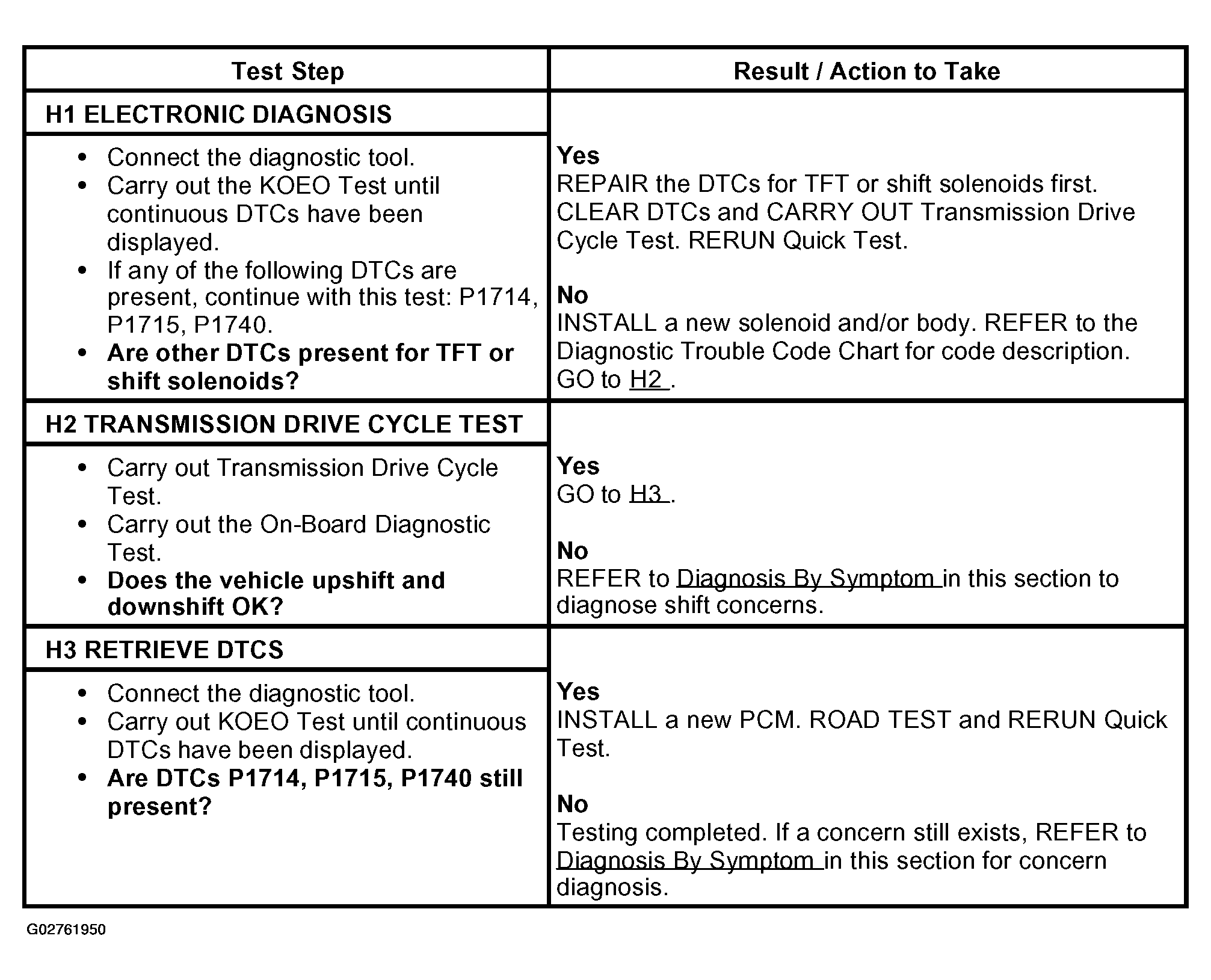

Fig 1: Pinpoint Test H: Solenoid Mechanical Failure (Step H1 To H3)
