Pinpoint Test A: Shift Solenoids

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Transmission Vehicle Harness Connector illustration preceding these pinpoint tests.

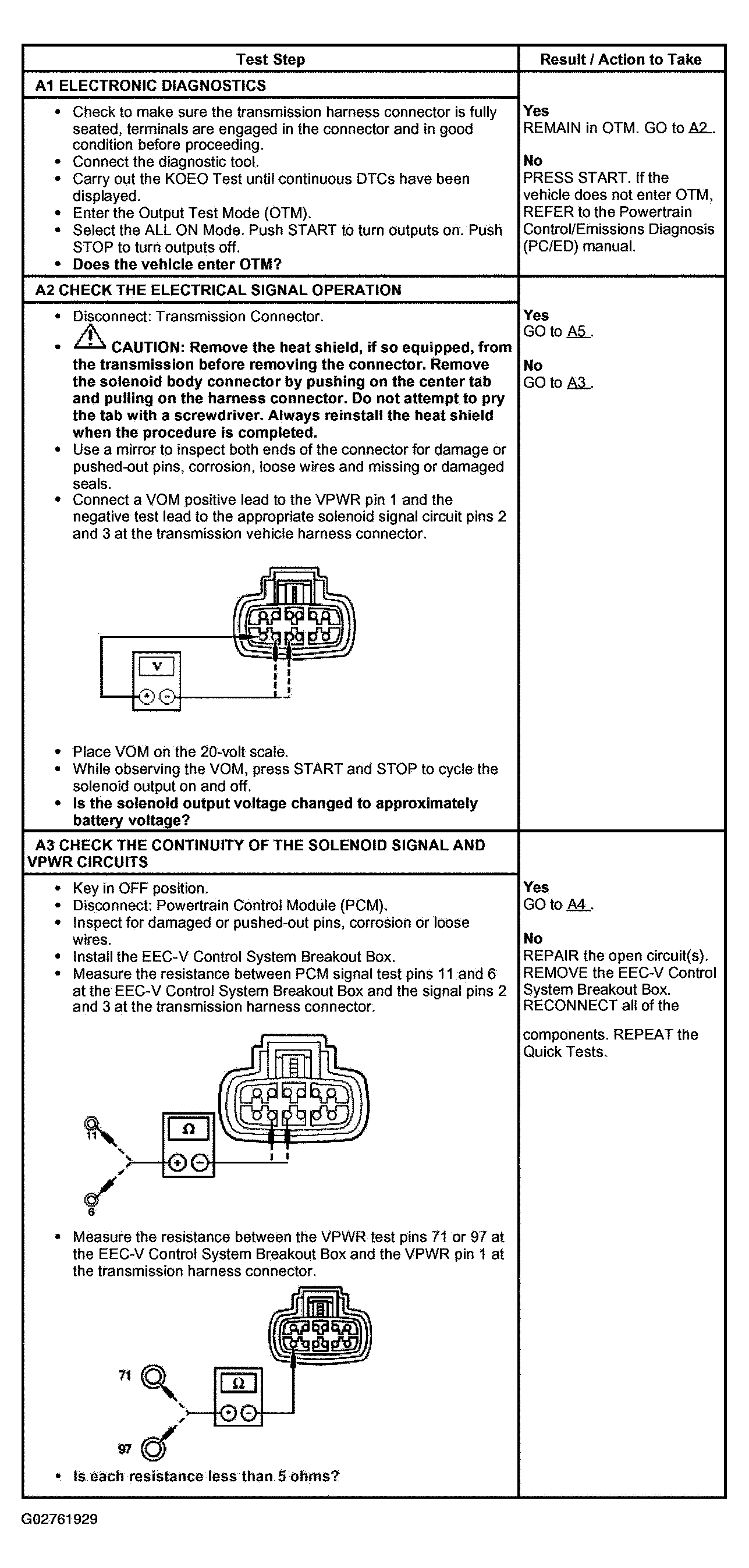

Fig 1: Pinpoint Test A: Shift Solenoids (Step A1 To A3)

Courtesy of FORD MOTOR CO.

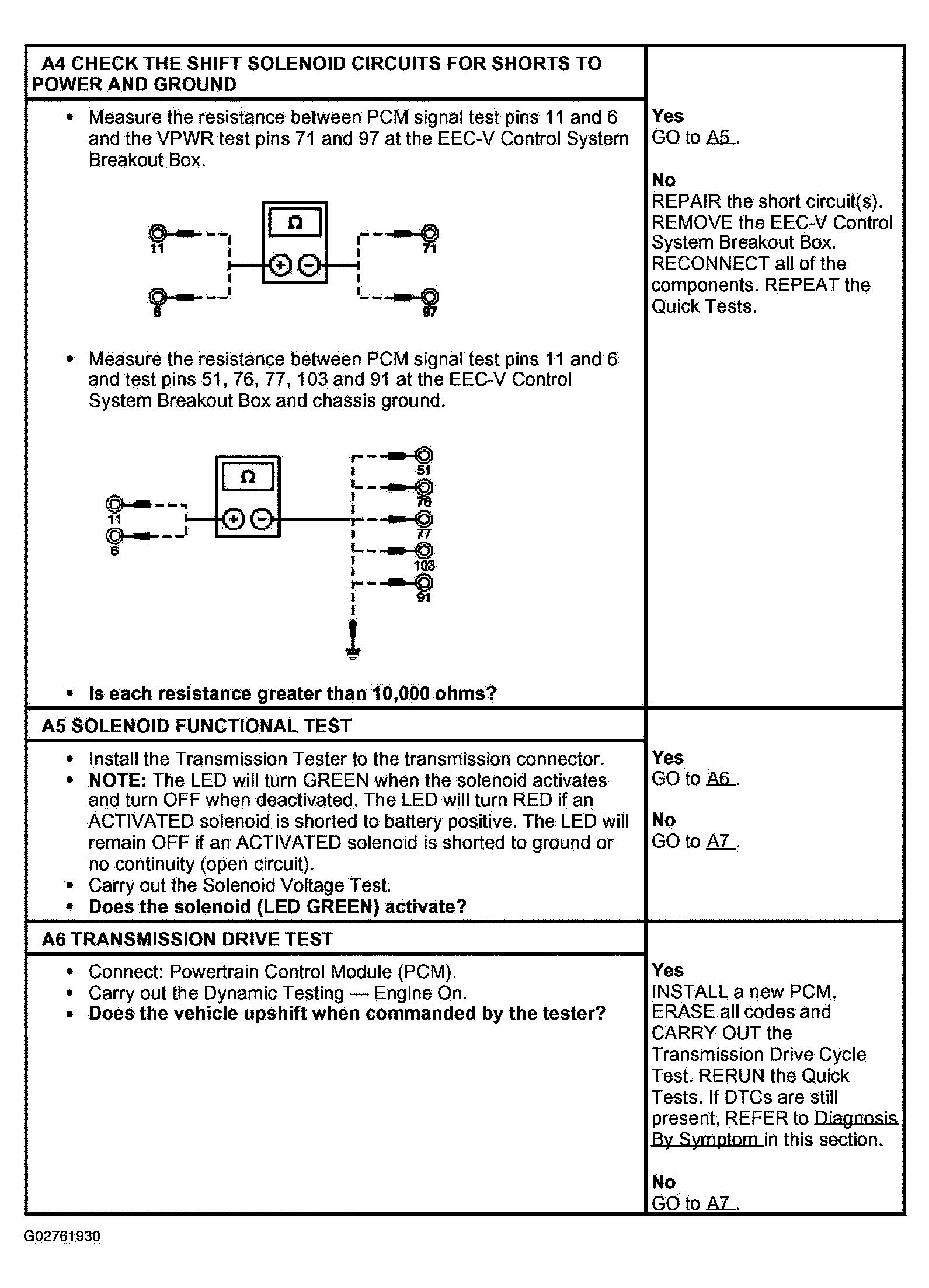

Fig 2: Pinpoint Test A: Shift Solenoids (Step A4 To A6)

Courtesy of FORD MOTOR CO.

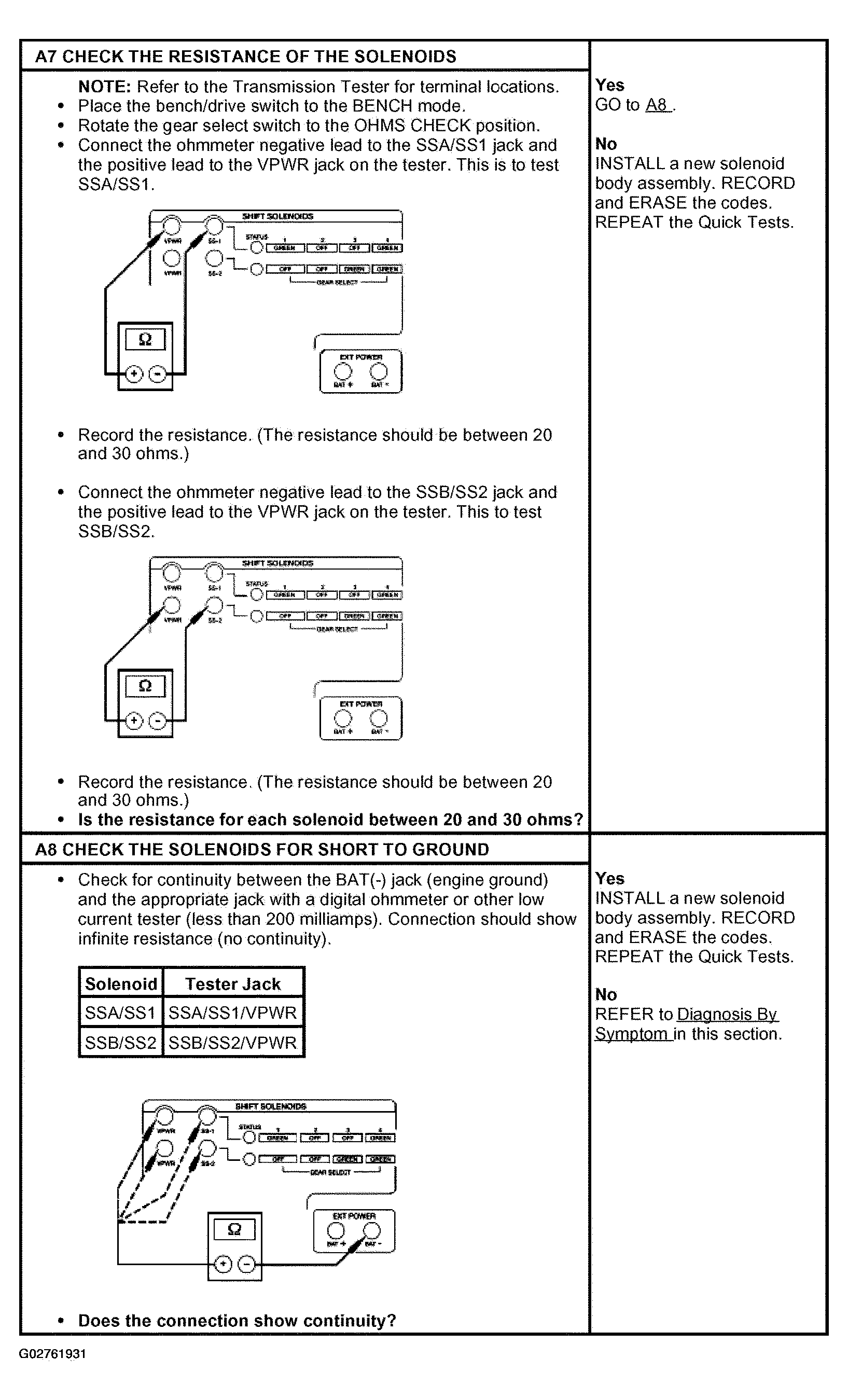

Fig 3: Pinpoint Test A: Shift Solenoids (Step A7 To A8)

Courtesy of FORD MOTOR CO.
