Evaporative Emissions: Notes

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

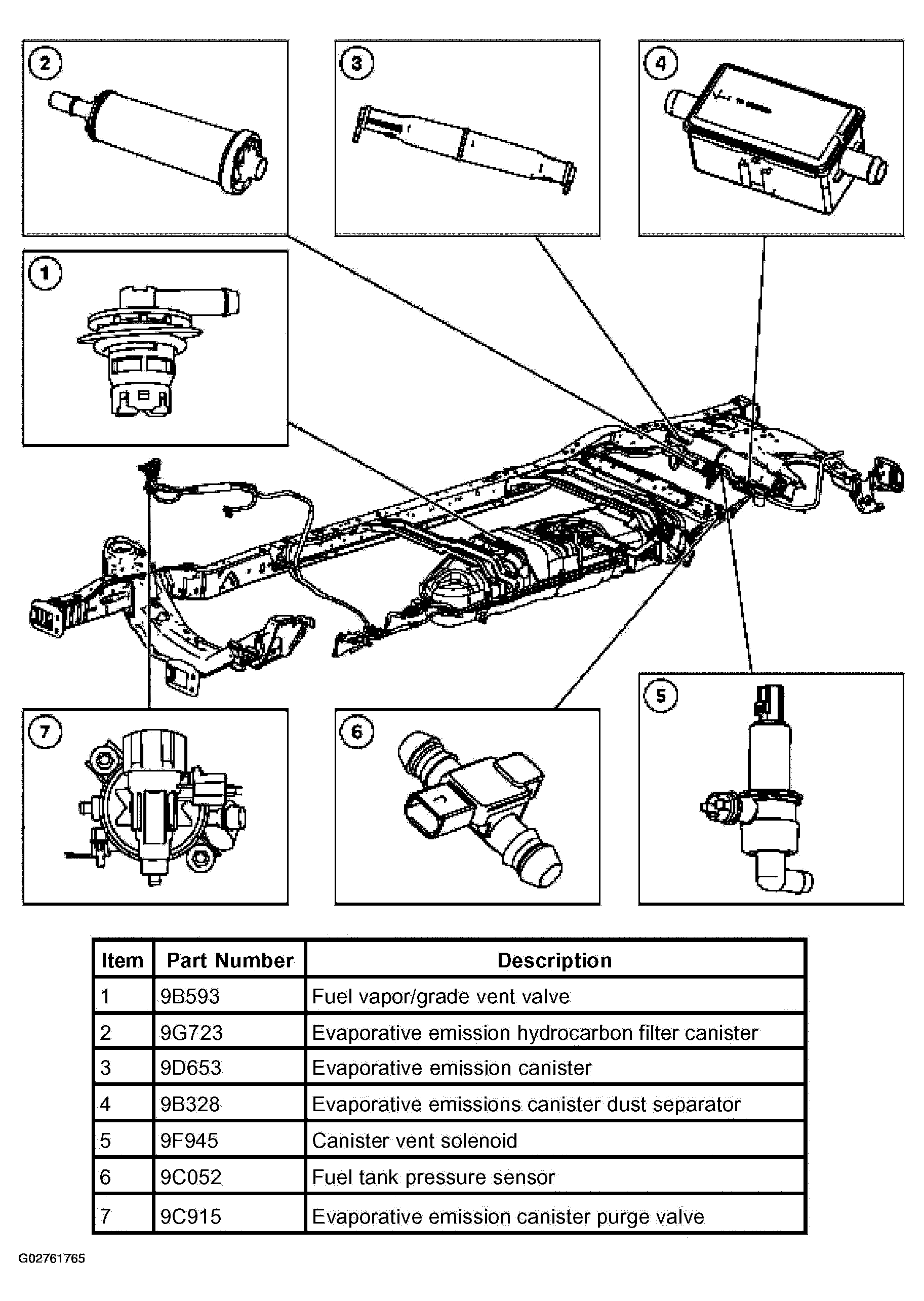

Fig 1: Identifying Evaporative Emission System Components - Midship Fuel Tank
G02761765Courtesy of FORD MOTOR CO.

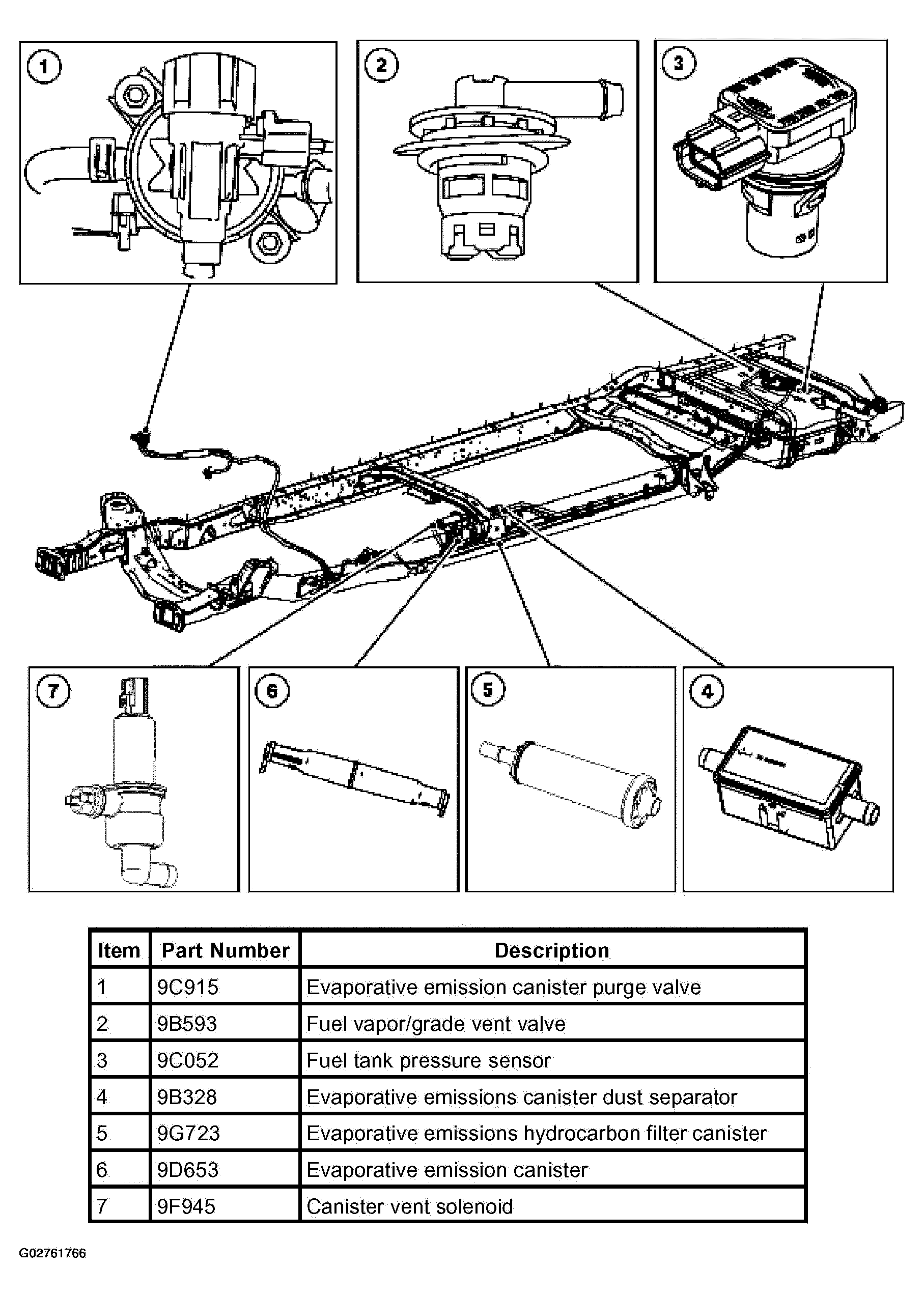

Fig 2: Identifying Evaporative Emission System - Aft-of-Axle Fuel Tank
G02761766Courtesy of FORD MOTOR CO.
