Coolant Pump - 4.6L, 5.4L and 6.8L: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fan and fan clutch. For additional information, refer to COOLING FAN - 4.6L, 5.4L AND 6.8L .
  2. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE article.
  3. Remove the coolant pump pulley.
    1. Remove the bolts.
    2. Remove the coolant pump pulley.

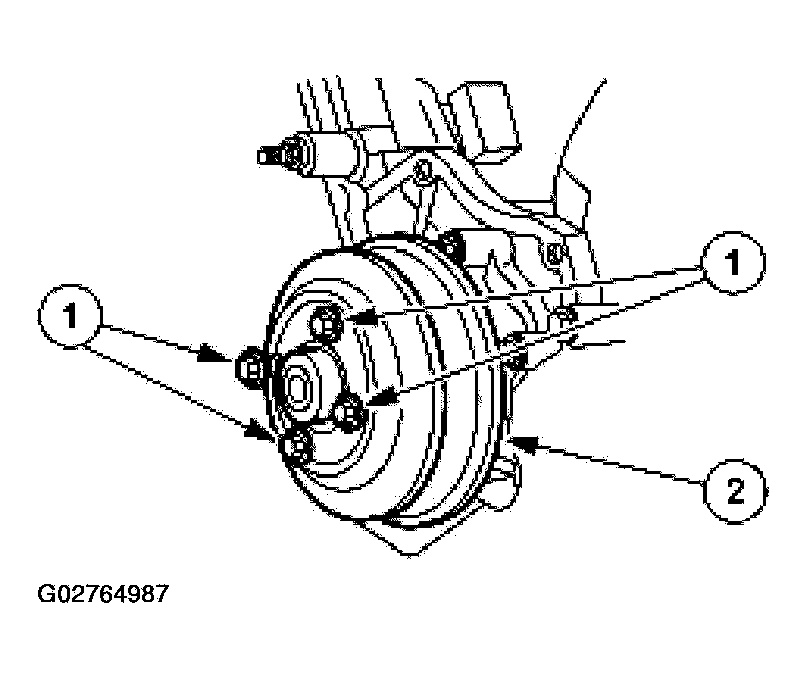

    Fig 1: Removing Coolant Pump Pulley (4.6L, 5.4L & 6.8L)
    G02764987Courtesy of FORD MOTOR CO.
  4. Remove the bolts.

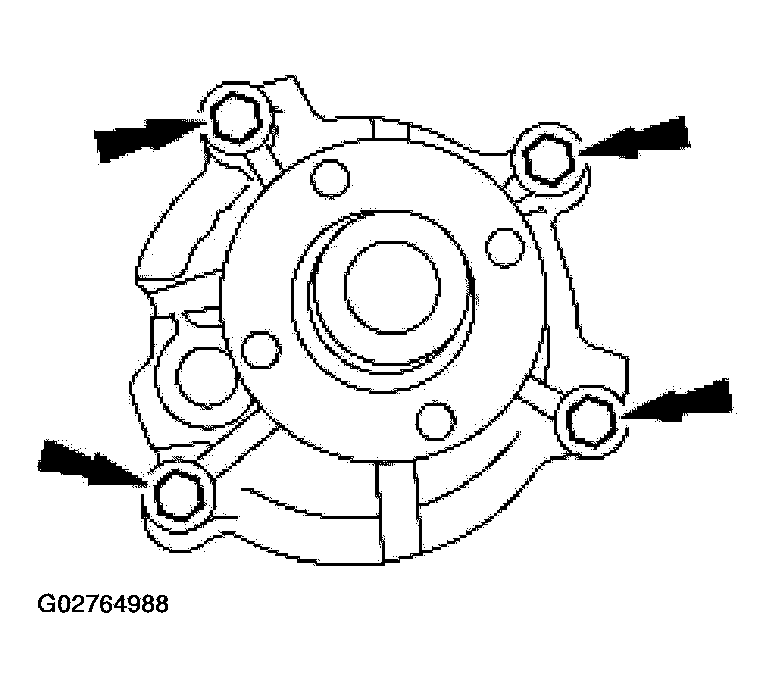

    Fig 2: Removing Coolant Pump Bolts (4.6L, 5.4L & 6.8L)
    G02764988Courtesy of FORD MOTOR CO.
  5. Remove the coolant pump from the cylinder block.
    Fig 3: Removing Coolant Pump (4.6L, 5.4L & 6.8L)
    G02764989Courtesy of FORD MOTOR CO.
