Hydraulic Lash Adjuster: Removal

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
    2. NOTE: The valve tappets are positional. Mark each valve tappet for installation in its original location.

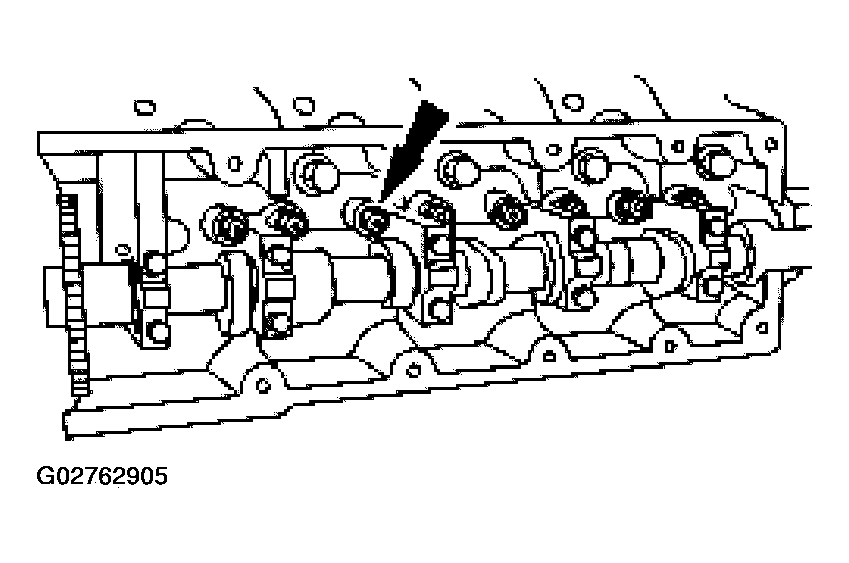

    Fig 1: Removing Valve Tappets
    G02762905Courtesy of FORD MOTOR CO.
  2. Remove the valve tappets.
