Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cooling fan and fan shroud. For additional information, refer to ENGINE COOLING .
  2. Remove the drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  3. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  4. Remove and discard the crankshaft pulley bolt.
  5. Using the special tool, remove the crankshaft pulley.

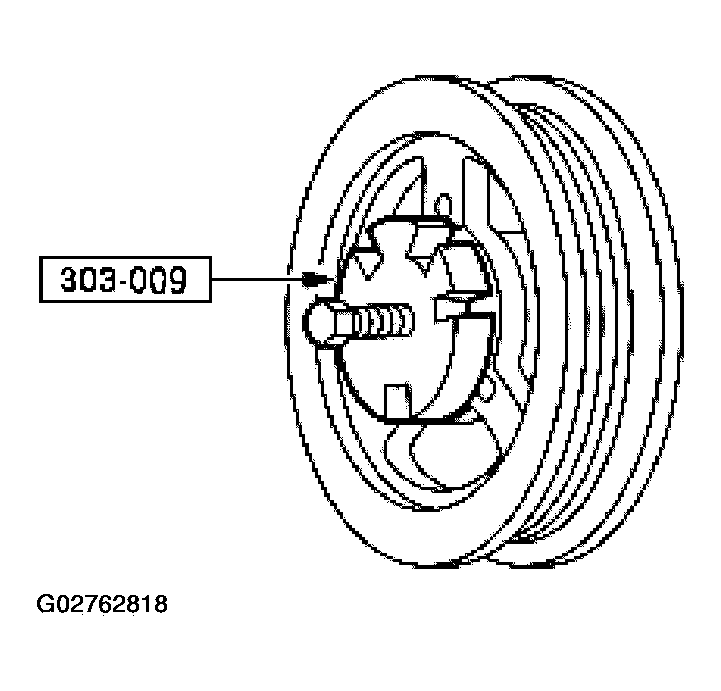

    Fig 1: Removing Crankshaft Pulley
    G02762818Courtesy of FORD MOTOR CO.
