Camshaft Roller Follower: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the camshaft roller followers.
    1. Install the special tool.
    2. Compress the valve spring.
    3. Install the camshaft roller followers.

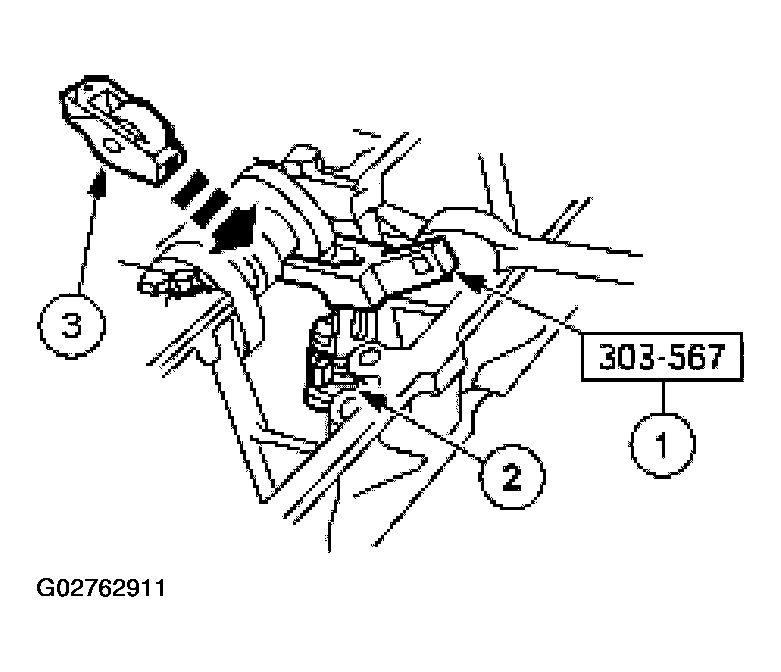

    Fig 1: Installing Camshaft Roller Followers
    G02762911Courtesy of FORD MOTOR CO.
  2. Remove the special tool.
    Fig 2: Removing Special Tool
    G02762912Courtesy of FORD MOTOR CO.
  3. Install the valve covers. For additional information, refer to VALVE COVER LH , VALVE COVER RH - 4.6L  or VALVE COVER RH - 5.4L .
