Axle Housing: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion flange pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts evenly in a cross pattern as shown.
    Fig 1: Installing Rear Axle U-Bolt Assembly
    G02761262Courtesy of FORD MOTOR CO.

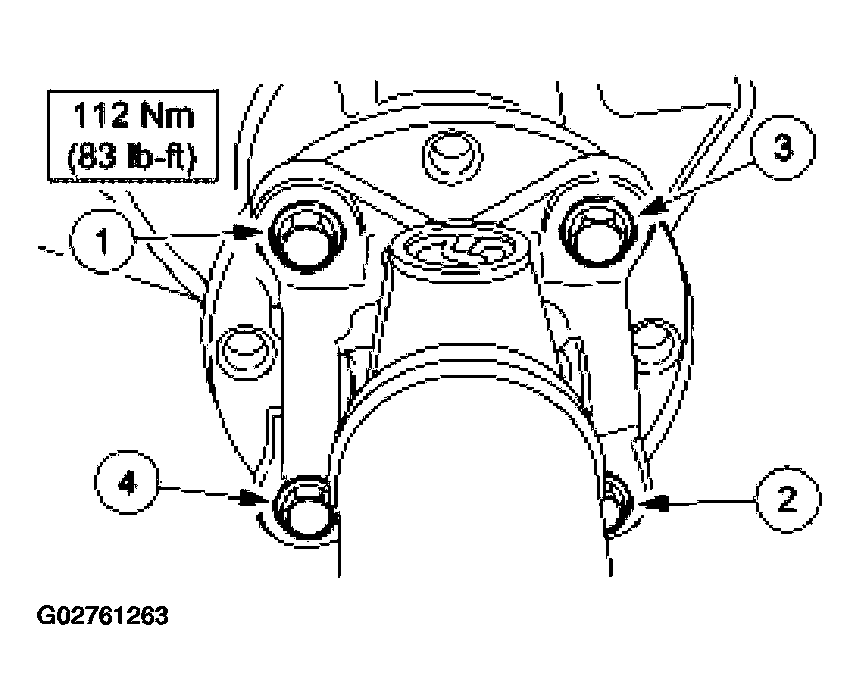

    Fig 2: Tightening Bolts In Cross Pattern
    G02761263Courtesy of FORD MOTOR CO.
  1. Follow the removal procedure in reverse order.
