Axle Shaft: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the rear wheel and tire assembly. For additional information, refer to WHEEL & TIRES .
  3. Remove the differential housing cover and drain the lubricant. For additional information, refer to DIFFERENTIAL HOUSING COVER .
    4. CAUTION: Never allow the rear disc brake caliper to hang from the brake hose. Provide suitable support.
  4. Remove the brake caliper and disc. For additional information, refer to DISC & DRUM .
  5. Remove the differential pinion shaft.
    1. Remove and discard the differential pinion shaft lock bolt.
    2. Remove the differential pinion shaft.

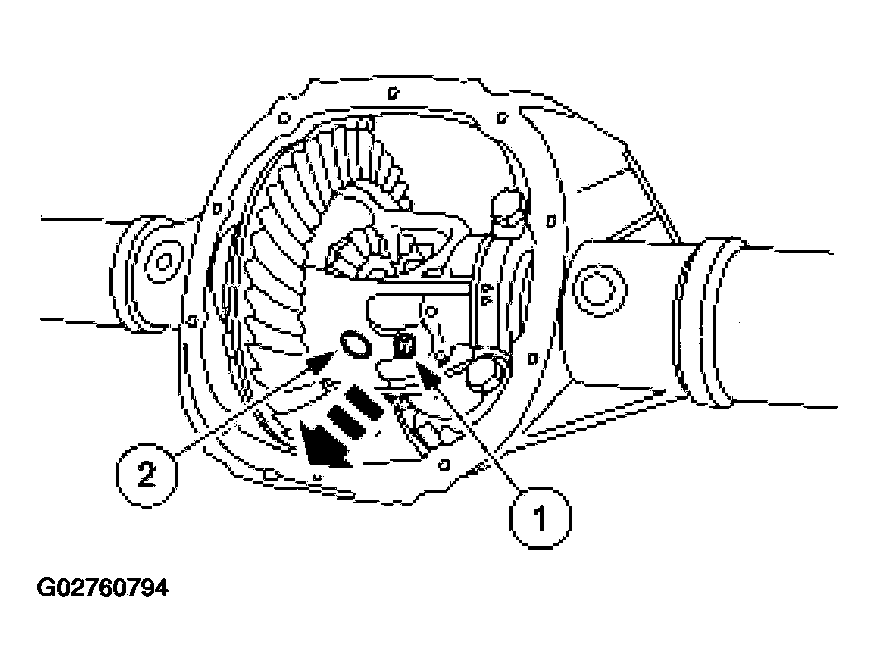

    Fig 1: Removing Differential Pinion Shaft
    G02760794Courtesy of FORD MOTOR CO.
    6. CAUTION: Do not damage the rubber O-ring in the axle shaft groove.

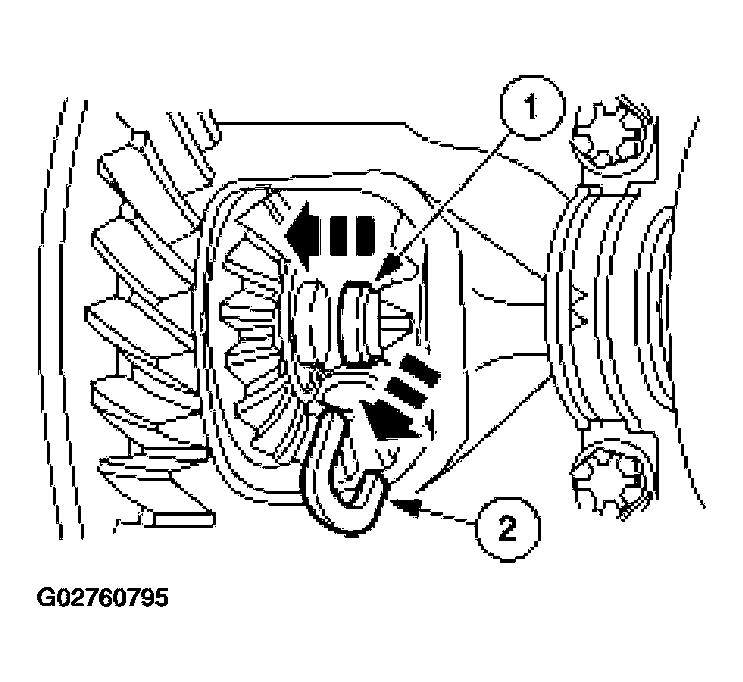

    Fig 2: Removing U-Washer
    G02760795Courtesy of FORD MOTOR CO.
  6. Remove the U-washer.
    1. Push the axle shaft inward.
    2. Remove the U-washer.
    7. CAUTION: Do not damage the wheel bearing oil seal.
    Fig 3: Removing Axle Shaft
    G02760796Courtesy of FORD MOTOR CO.
  7. Remove the axle shaft.
