Differential Carrier -Dana 60: Installation
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Assemble the differential bearing cups to the differential bearings.

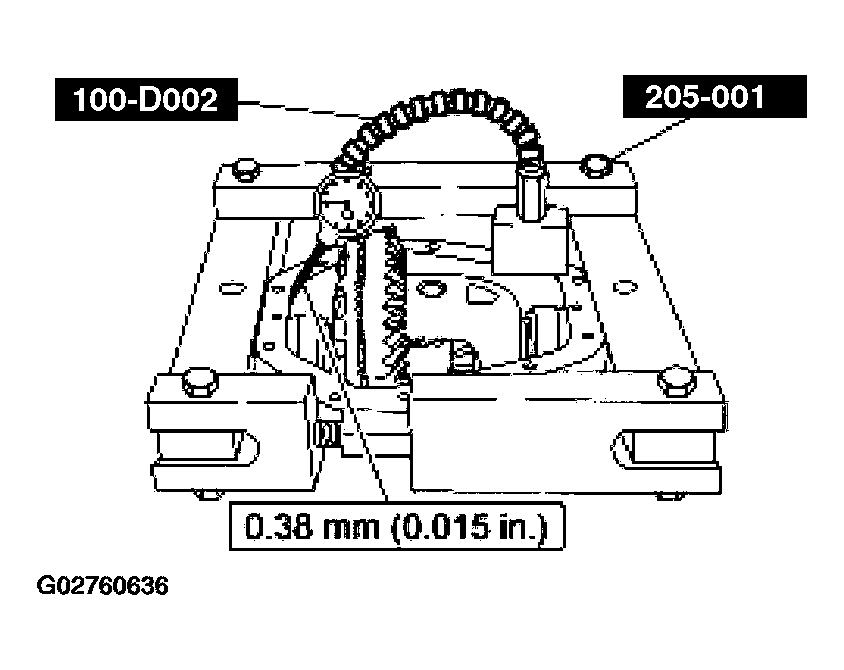

- Using the special tools, spread the differential housing to the specification.
- Use a rawhide hammer to seat the differential and outboard spacers into the differential housing pocket.
- Remove the special tools.
- Use a rawhide hammer to seat the differential and outboard spacers into the differential housing pocket.

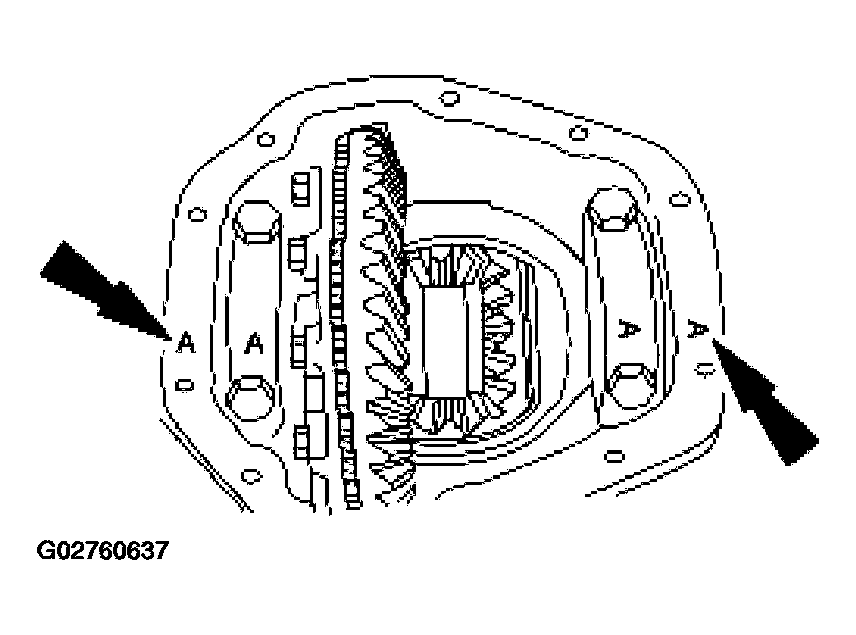

- Install the bearing caps, aligning the letters with those on the differential housing. Tighten the bolts to specification.
- Using the special tools, measure the differential ring gear and pinion backlash at three equally spaced points.
- Install the axle shafts. For additional information, refer to AXLE SHAFT - SEMI-FLOATING AXLE .
CAUTION:
Do not spread the differential housing more than specified.
CAUTION:
Avoid nicking the ring gear teeth and the anti-lock speed sensor ring during assembly.
CAUTION:
Match the mating letters as noted during removal.
