Differential Case End Play Check

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outboard spacers in the side from which they were removed.
    Fig 1: Installing Outboard Spacer
    G02760366Courtesy of FORD MOTOR CO.
  2. NOTE: Remove all nicks, burrs, dirt, etc., from the differential case hubs, to allow the bearings to rotate freely.
    Fig 2: Installing Special Tool On Differential Case Hubs
    G02760367Courtesy of FORD MOTOR CO.
  3. Place the special tool on the differential case hubs and position the assembly into the differential housing.
    • For Model 60/70 axles, use tool 205-D047.
    • For Model 70TR axles, use tool 205-D048.
  4. NOTE: Use a Dial Indicator with a minimum travel capability of 5.08 mm (0.200 in).
    NOTE: The rear axle uses a combination of differential bearing shims and selective outboard spacers to control differential case end play. The old outboard spacers provide a good starting point when setting end play. However, if additional shimming is necessary, beyond what the hardened differential bearing shims can provide, select and install different thickness outboard spacers.
    Fig 3: Mounting Special Tools On Flat Surface Of Bolts
    G02760368Courtesy of FORD MOTOR CO.
  5. Mount the special tools as shown. Locate the tip of special tool 308-021 on a flat surface of one of the bolts.
  6. NOTE: Repeat this step and the following step until the same reading appears on the indicator each time. Record the reading. This is the total differential bearing shim thickness required, less preload. The final calculation occurs later during assembly.

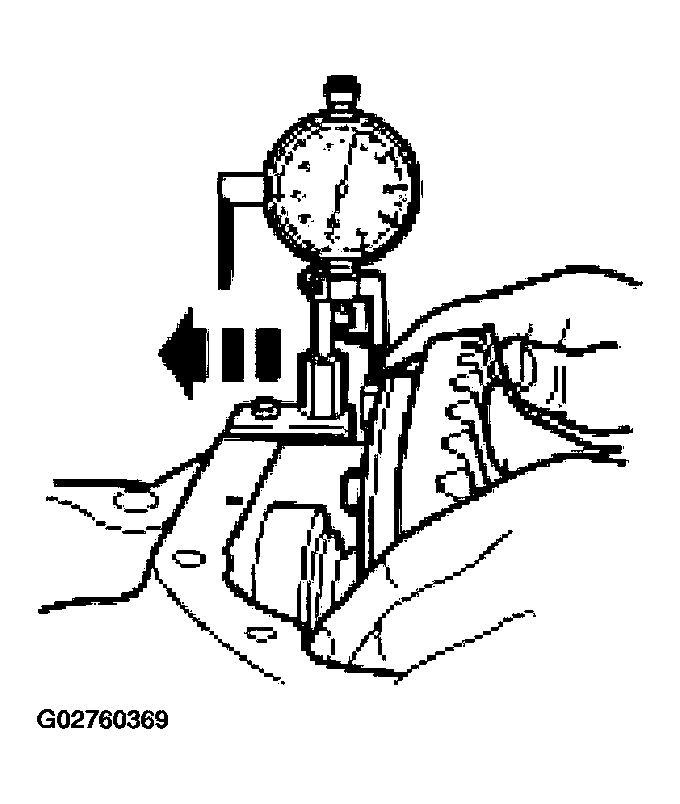

    Fig 4: Forcing The Differential Case As Far As Possible Toward The Indicator
    G02760369Courtesy of FORD MOTOR CO.
  7. Force the differential case as far as possible toward the indicator. With force still applied, set the indicator at 0.
  8. Force the differential case as far as it will go in the opposite direction. Record the total differential case end play reading.
    Fig 5: Measuring Total Differential Case End Play Reading
    G02760370Courtesy of FORD MOTOR CO.
  9. After making sure the reading is correct, remove the special tools and the differential from the differential housing. Do not remove the Dummy Bearings from the differential case at this time.
    Fig 6: Removing Special Tools From Differential Case
    G02760371Courtesy of FORD MOTOR CO.
    Fig 7: Identifying Differential Case Dummy Bearings
    G02760372Courtesy of FORD MOTOR CO.
