RH Reversing Lamp C4016, LH Reversing Lamp C4017

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

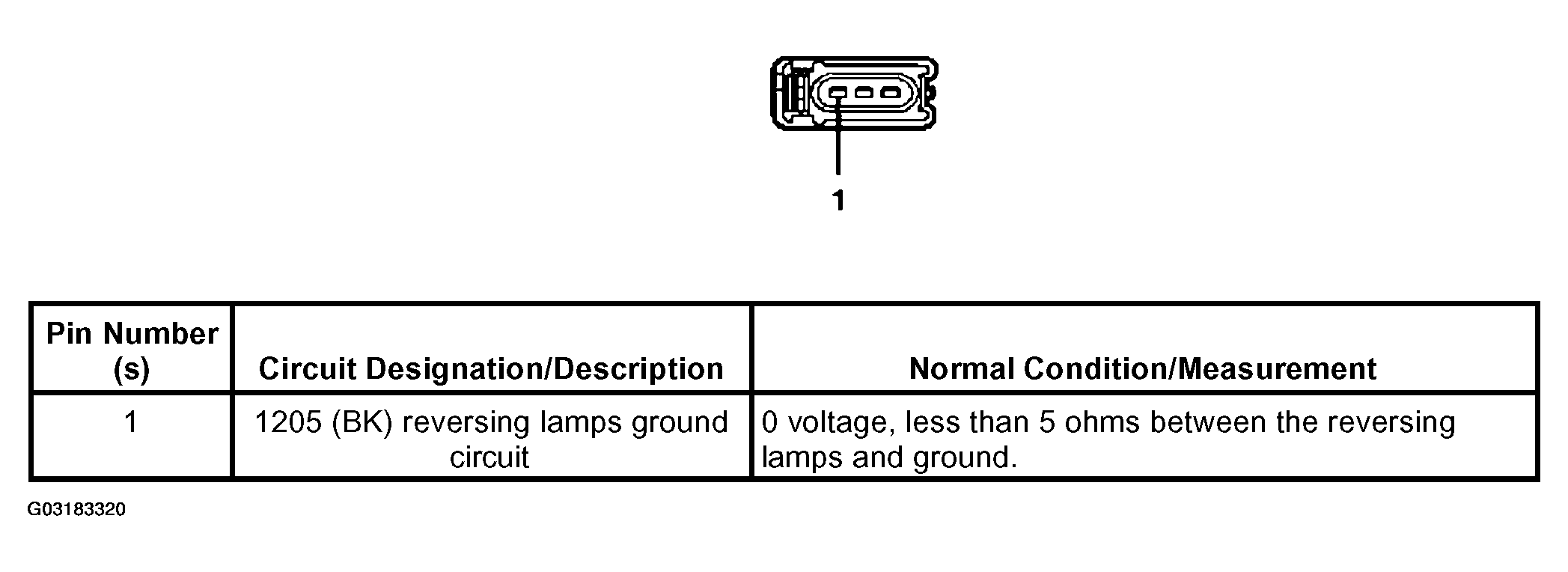

Fig 1: Identifying RH Reversing Lamp C4016, LH Reversing Lamp C4017 Connector Terminals
G03183320Courtesy of FORD MOTOR CO.
