Generator C102a (All 4.6L vehicles and 4.0L vehicles built to 12/08/2003)

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

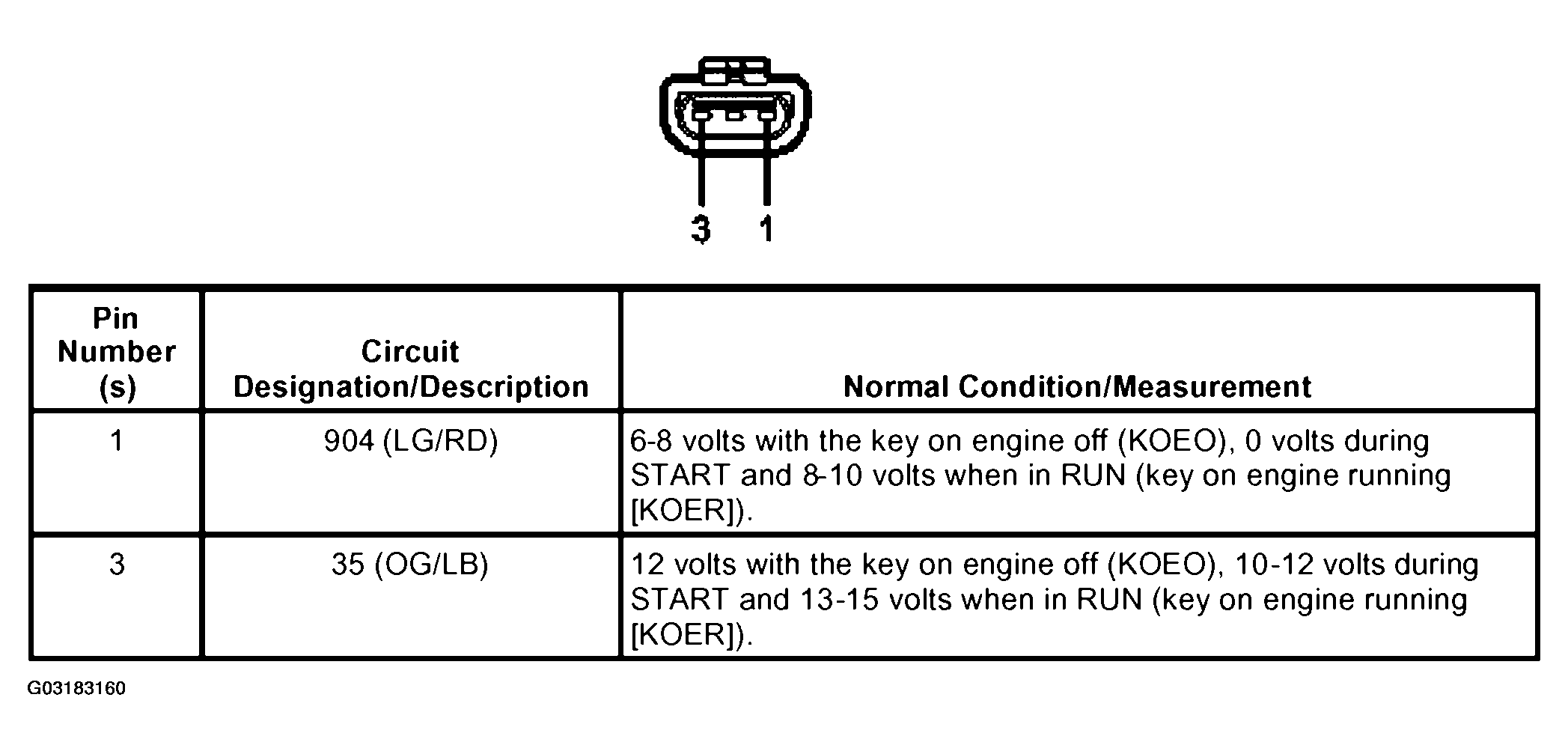

Fig 1: Identifying Generator C102A (All 4.6L Vehicles And 4.0L Vehicles Built To 12/08/2003) Connector Pins
G03183160Courtesy of FORD MOTOR CO.
