Item 37 and 38: Band Adjusting Locknut and Screw Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Failure to loosen the OD band adjusting screw prior to pump removal may cause damage to the pump and OD band.

CAUTION: Discard the locknuts. The locknuts are not reusable for assembly.

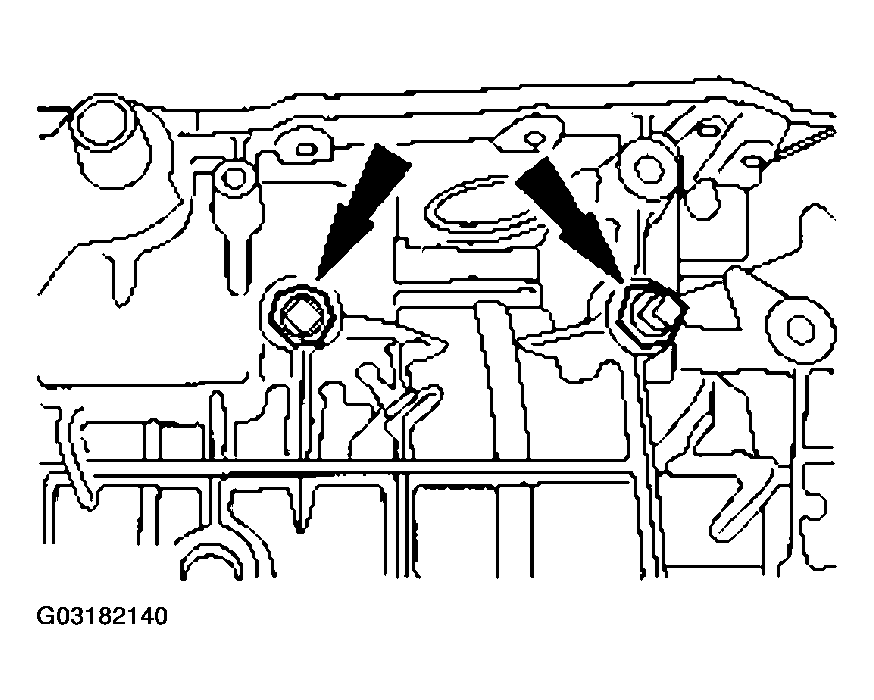

Fig 1: Removing Locknuts

Courtesy of FORD MOTOR CO.

Remove the locknuts and loosen the OD band adjusting screw.
