Items 81, 82, 83, and 84: Park Pawl Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The 4x2 vehicle is shown, the 4x4 is similar.

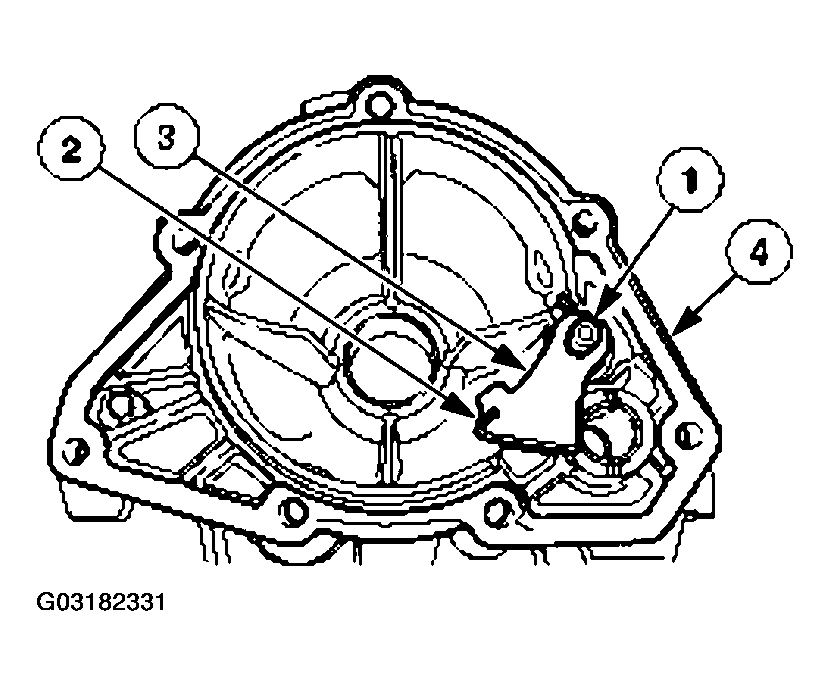

Fig 1: Installing Parking Pawl Assembly

Courtesy of FORD MOTOR CO.

Install the parking pawl assembly and gasket.
1. Install the parking pawl shaft.
2. Install the parking pawl return spring.
3. Install the parking pawl.
4. Install a new gasket.
