Item 22: Reverse Brake Drum Retaining Ring Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: The low/reverse brake drum must be pulled forward to install the low/reverse planet retaining ring.

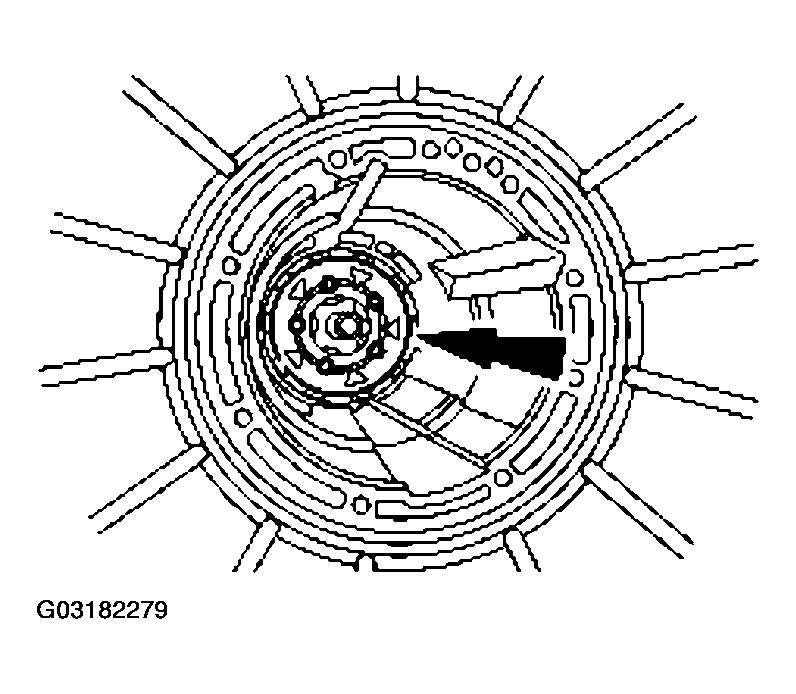

    Fig 1: Installing Retaining Ring
    G03182279Courtesy of FORD MOTOR CO.
  1. Install the retaining ring.
