Item 15: Cooling Fan Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Cardboard must be placed against the radiator when installing the cooling fan. Failure to follow these procedures can result in damage to the vehicle.
  1. Place a piece of cardboard against the radiator to prevent damage while installing the cooling fan.
  2. Using the special tools, install the fan blade and the clutch assembly.

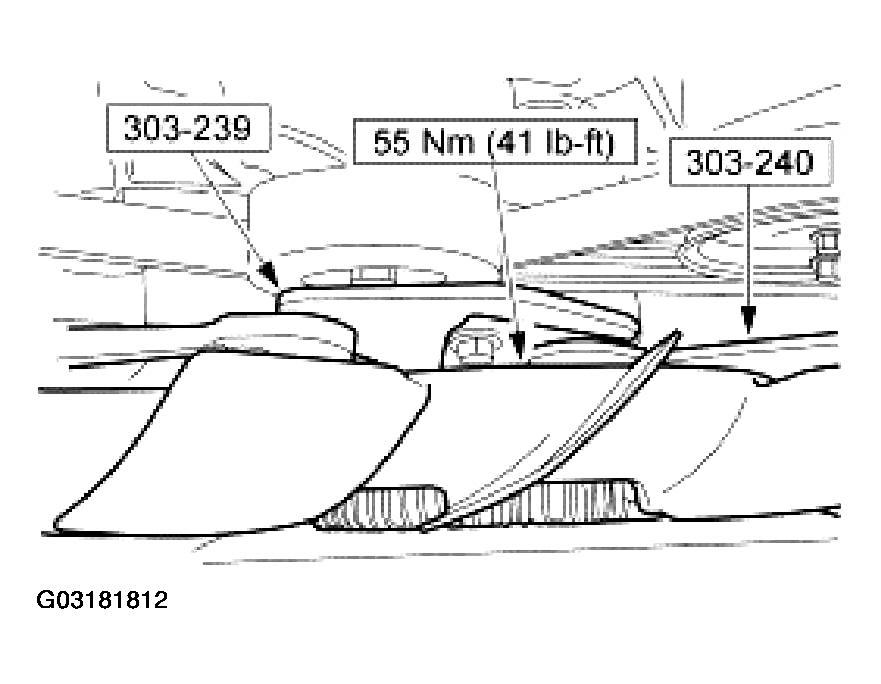

    Fig 1: Installing Fan Blade And Clutch Assembly Using Special Tool
    G03181812Courtesy of FORD MOTOR CO.
