Item 6: Camshaft Position (CMP) Sensor Bolt Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper radiator hose bracket.

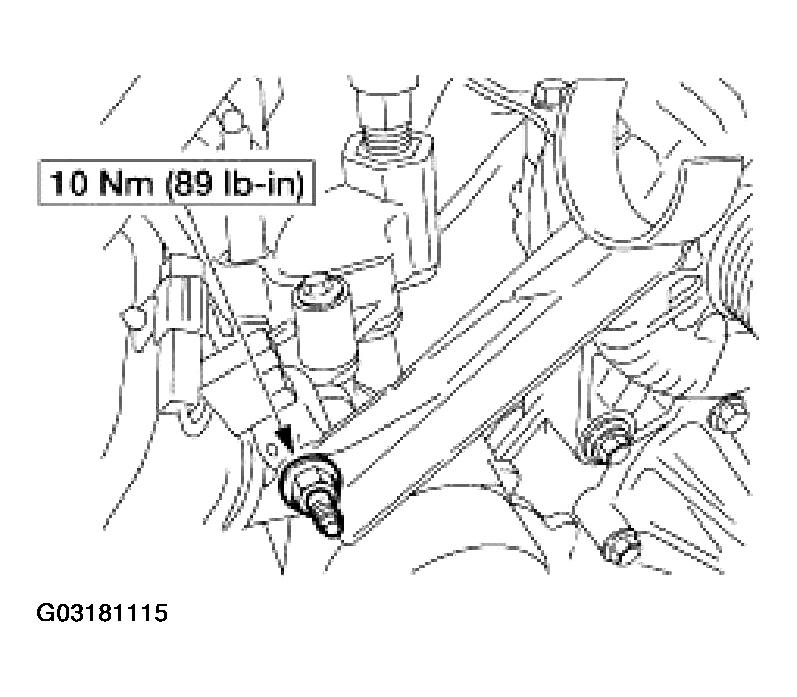

    Fig 1: Removing Upper Radiator Hose Bracket
    G03181115Courtesy of FORD MOTOR CO.
  2. Remove the radio capacitors.

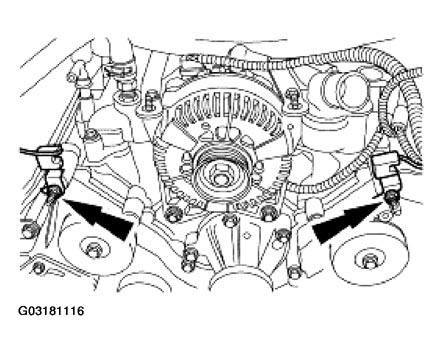

    Fig 2: Removing Radio Capacitors
    G03181116Courtesy of FORD MOTOR CO.
  3. Remove the power steering reservoir bracket.
    Fig 3: Removing Power Steering Reservoir Bracket
    G03181117Courtesy of FORD MOTOR CO.
