Item 16: Lower Block Cradle Gasket Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: If the block cradle gasket is not secured within four minutes of the sealant application, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow the silicone to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

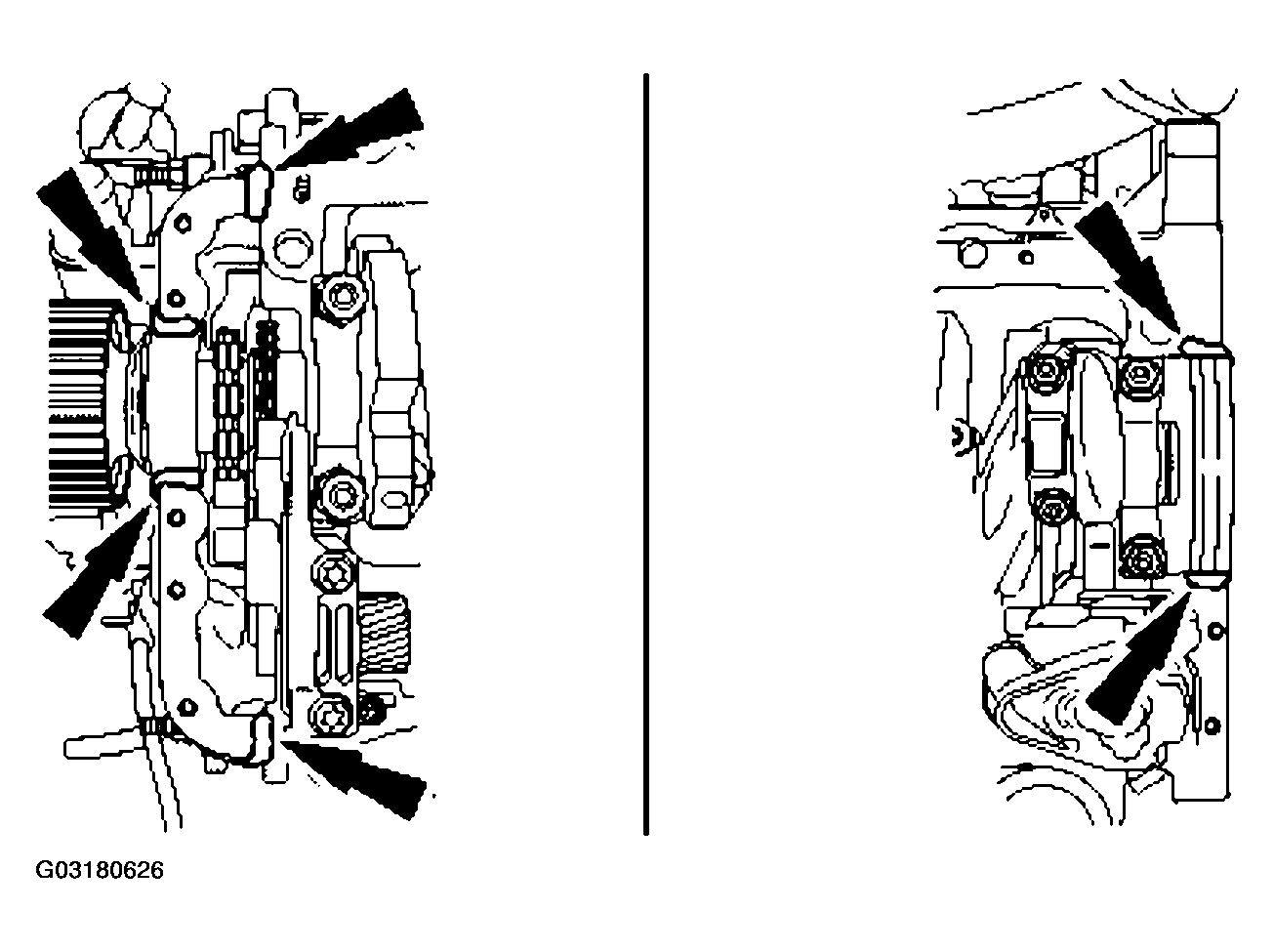

    Fig 1: Applying Silicone
    G03180626Courtesy of FORD MOTOR CO.
  1. Apply silicone in the six places shown.
