Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    PART IDENTIFICATION

    Part Steps
    Accessory drive belt 1
    Accessory drive belt idler pulley 1-3
    Accessory drive belt tensioner 1, 4 and 5

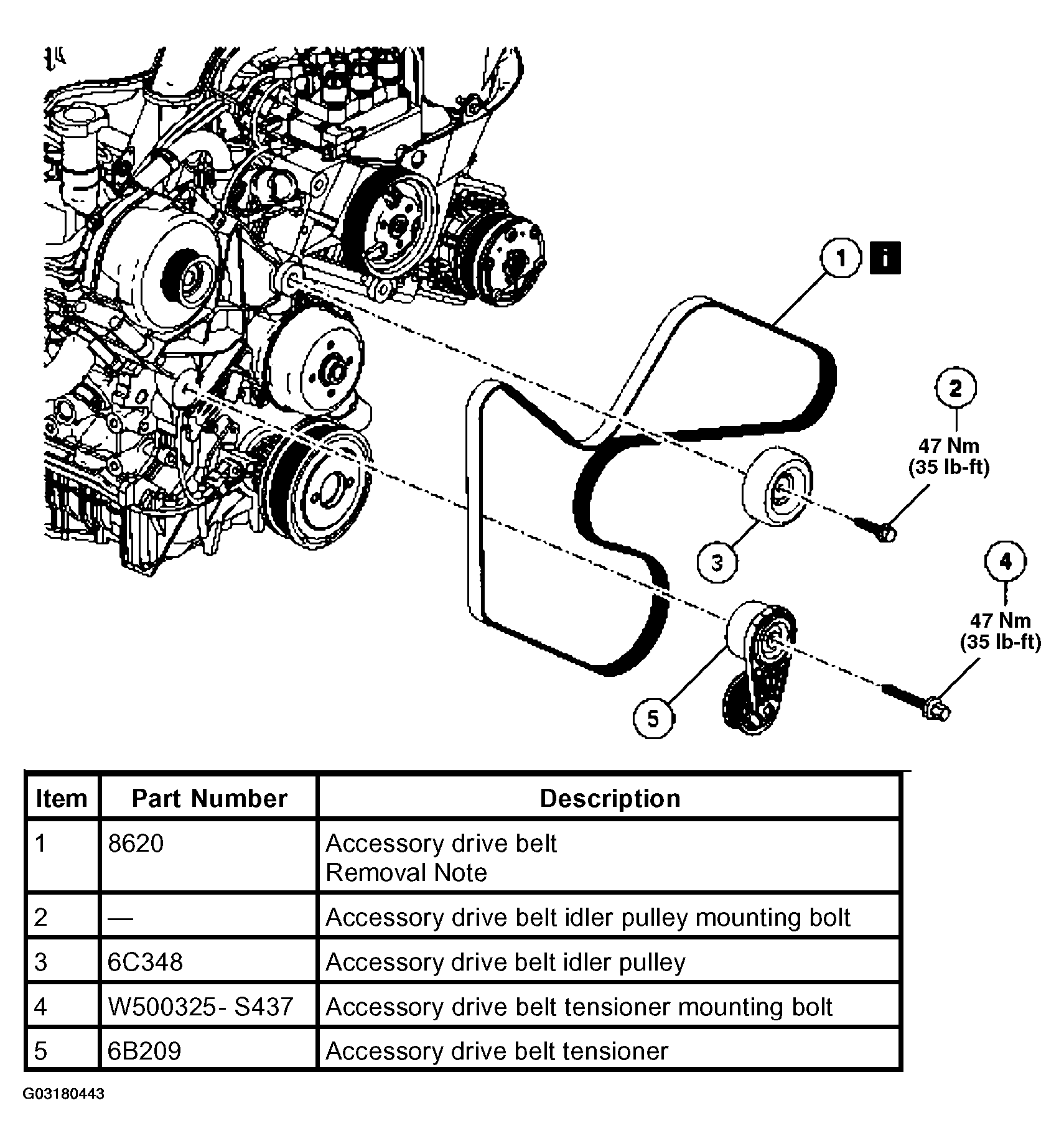

    2. Fig 1: Removing Accessory Drive Belt Tensioner And Pulley
    G03180443Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
