Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire assemblies. For additional information, refer to WHEEL AND TIRE - REAR .
  2. Remove the components in the order indicated in the following illustration and table.
  3. To install, reverse the removal procedure.

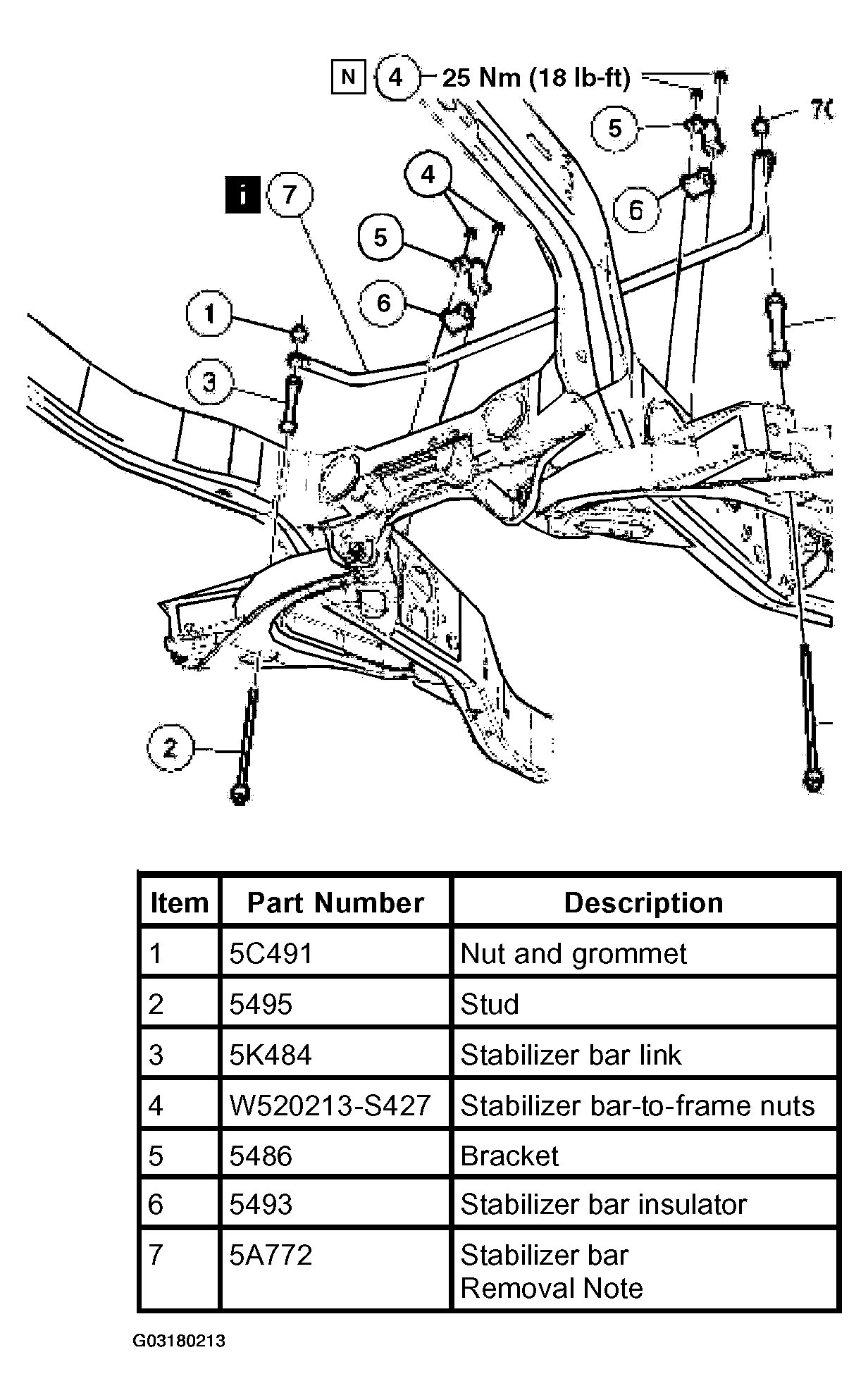

    Fig 1: Identifying Stabilizer Bar And Link (Rear)
    G03180213Courtesy of FORD MOTOR CO.
