Item 2: Seat Side Trim Panel And Recliner Handle Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable tool, carefully pry the side shield for access to the recliner handle clip and remove the clip and handle.
    • Remove the two screws and trim panel.

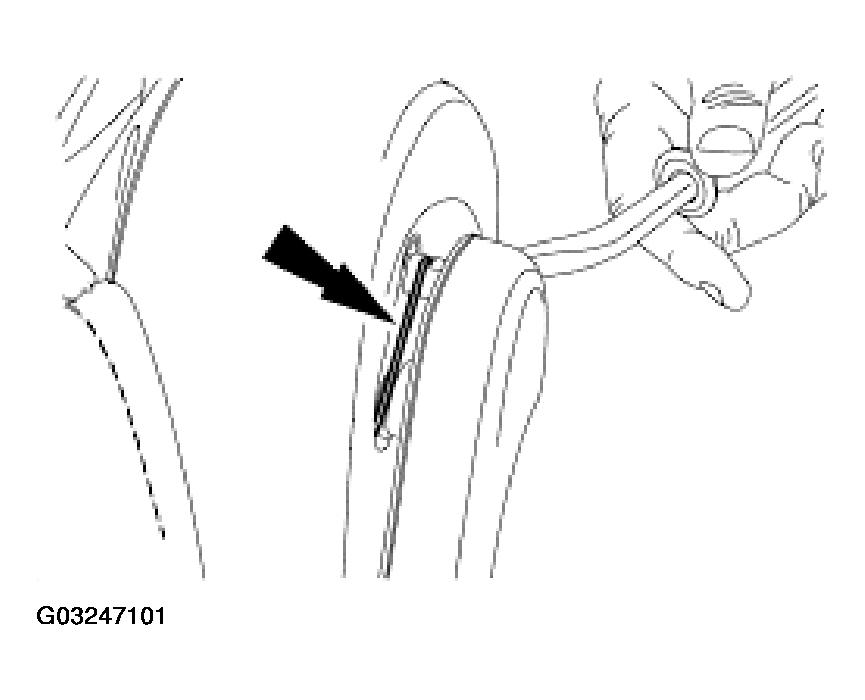

      Fig 1: Accessing Recliner Handle Clip
      G03247101Courtesy of FORD MOTOR CO.
