Item 8: Seat Backrest Trim Cover Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide down to remove the backrest hardboard panel.
    2. CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat backrest foam pad.
  2. Separate the hook and loop fasteners.
  3. Remove and discard the hog rings and remove the backrest trim cover.

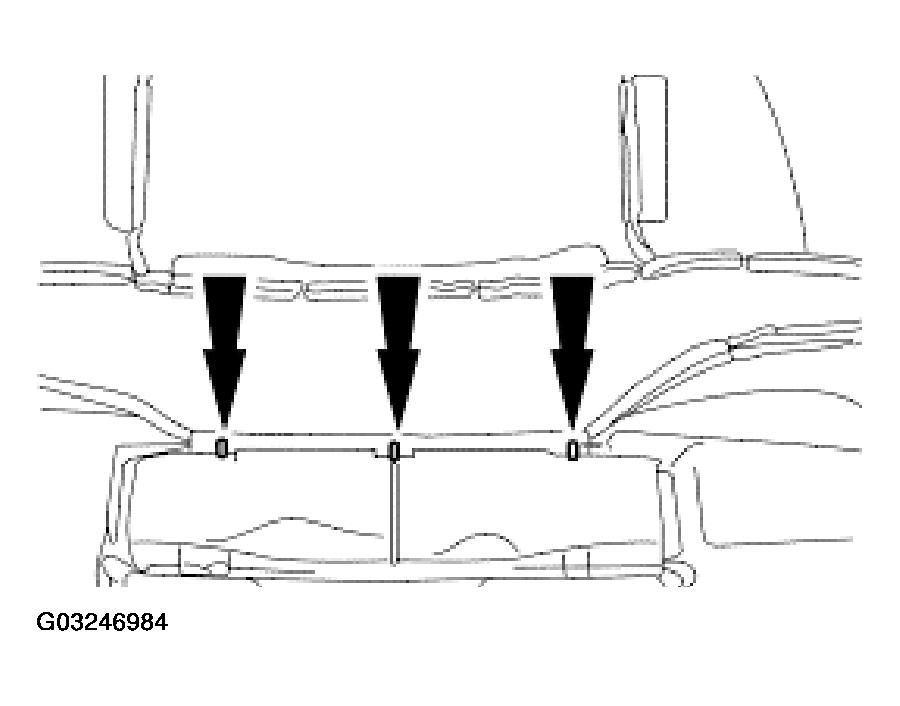

    Fig 1: Removing Hog Rings And Backrest Trim Cover
    G03246984Courtesy of FORD MOTOR CO.
