Bussed Electrical Center (BEC) C1035a

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

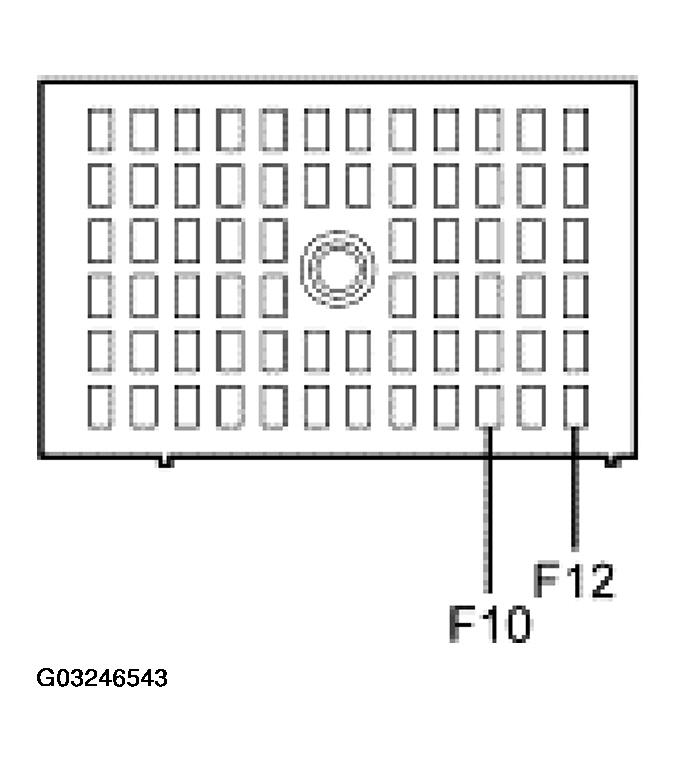

BUSSED ELECTRICAL CENTER (BEC) C1035A

G03246543
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
F10 56 (DB/OG) V+ BATT feed to rear wiper motor 10 volts or greater at all times.
F12 1671 (RD) V+ BATT feed to windshield wiper motor 10 volts or greater at all times.
