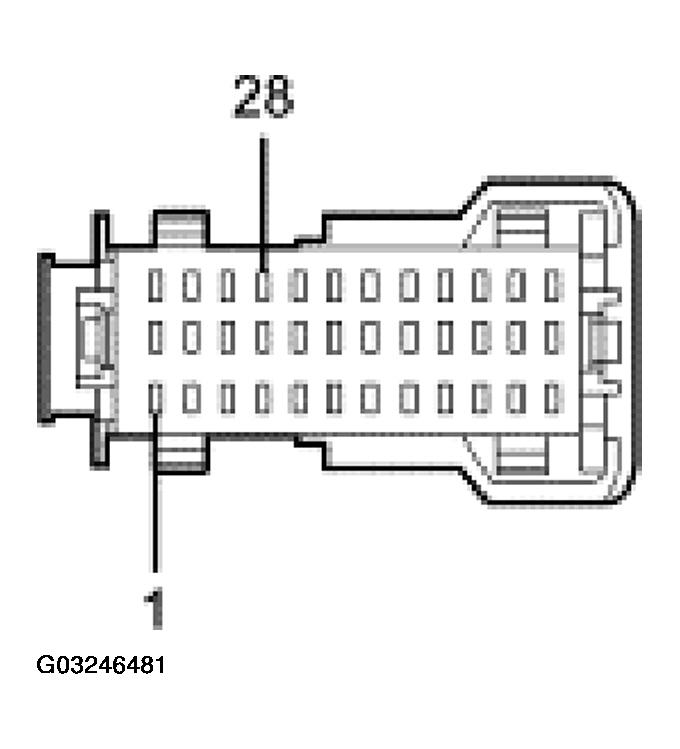

SMART JUNCTION BOX (SJB) C2280H
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 296 (WH/VT) power from the BEC fuse 10 (30A) | 10 volts or greater at all times. 5 ohms or less between connectors (both disconnected). |
| 28 | 964 (DB/LG) power from the BEC fuse 6 (30A) | 10 volts or greater at all times. 5 ohms or less between connectors (both disconnected). |
