Bussed Electrical Center (BEC) C1035a

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
BUSSED ELECTRICAL CENTER (BEC) C1035A

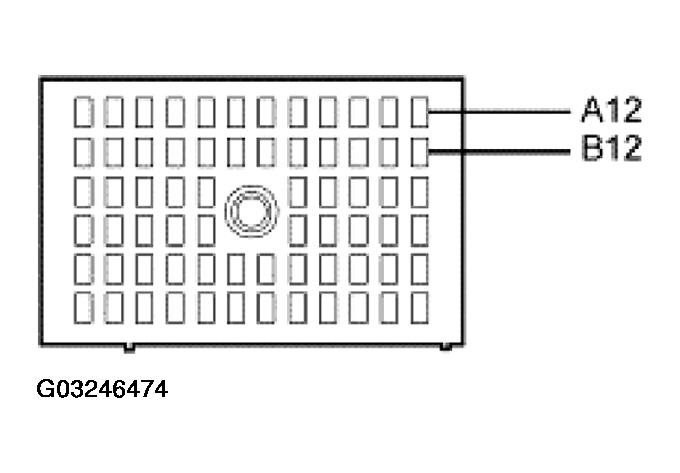

G03246474
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
A12 186 (BN/LB) rear window defrost relay power output to rear window defrost grid. 10 volts or greater with the engine running and the rear window defrost switch ON, 5 ohms or less between connectors (both disconnected).
B12 1389 (WH) rear window defrost relay solenoid control from the SJB 5 ohms or less between the connectors (both disconnected), 10,000 ohms or greater between circuit 1389 (WH) and ground.
