LH Auxiliary Lamp C1445, RH Auxiliary Lamp C1446

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

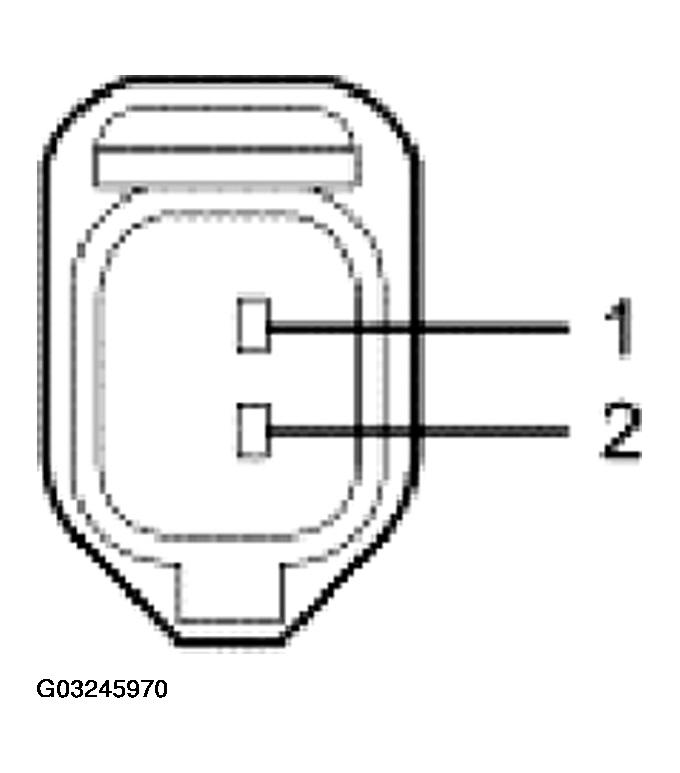

Fig 1: Identifying LH Auxiliary Lamp C1445, RH Auxiliary Lamp C1446
G03245970Courtesy of FORD MOTOR CO.
LH AUXILIARY LAMP C1445, RH AUXILIARY LAMP C1446 CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 1205 (BK) ground circuit 0 volts, less than 5 ohms between the auxiliary lamp and ground.
2 (C1445) 1344 (VT/LB) power supply circuit 0 volts, less than 5 ohms between the auxiliary lamp and the SJB. Greater than 10 volts with the parking lamps ON.
2 (C1446) 1343 (PK/OG) power supply circuit 0 volts, less than 5 ohms between the auxiliary lamp and the SJB. Greater than 10 volts with the parking lamps ON.
