High Beam Relay C1050

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

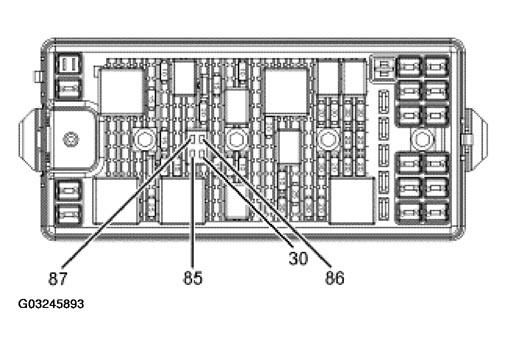

Fig 1: Identifying High Beam Relay C1050
G03245893Courtesy of FORD MOTOR CO.
HIGH BEAM RELAY C1050 CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
30 2037 (RD) B+ voltage supply circuit Greater than 10 volts with the ignition in any position.
85 2037 (RD) B+ voltage supply circuit Greater than 10 volts with the ignition in any position.
86 1708 (LG/BK) relay coil control ground circuit 0 voltage, less than 5 ohms between the high beam relay and the SJB.
87 1335 (YE/WH) RH headlamp high beam supply circuit 1337 (VT/YE) LH headlamp high beam supply circuit Less than 5 ohms to ground through high beams lamps.
