Parking Aid Speaker - Rear

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH D-pillar trim panel. For additional information, refer to INTERIOR TRIM PANELS .
  2. Remove the parts in the order indicated in the following illustration and table.

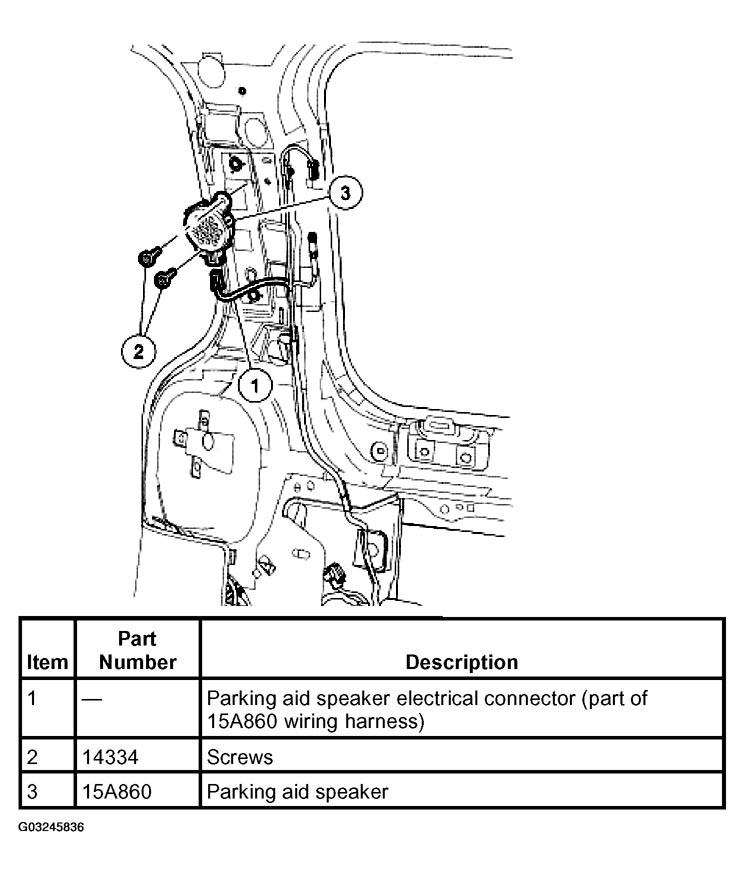

    Fig 1: Parking Aid Speaker - Rear Components Removal Sequence
    G03245836Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
