Removal And Installation

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
  2. Remove the parts in the order indicated in Fig 1.

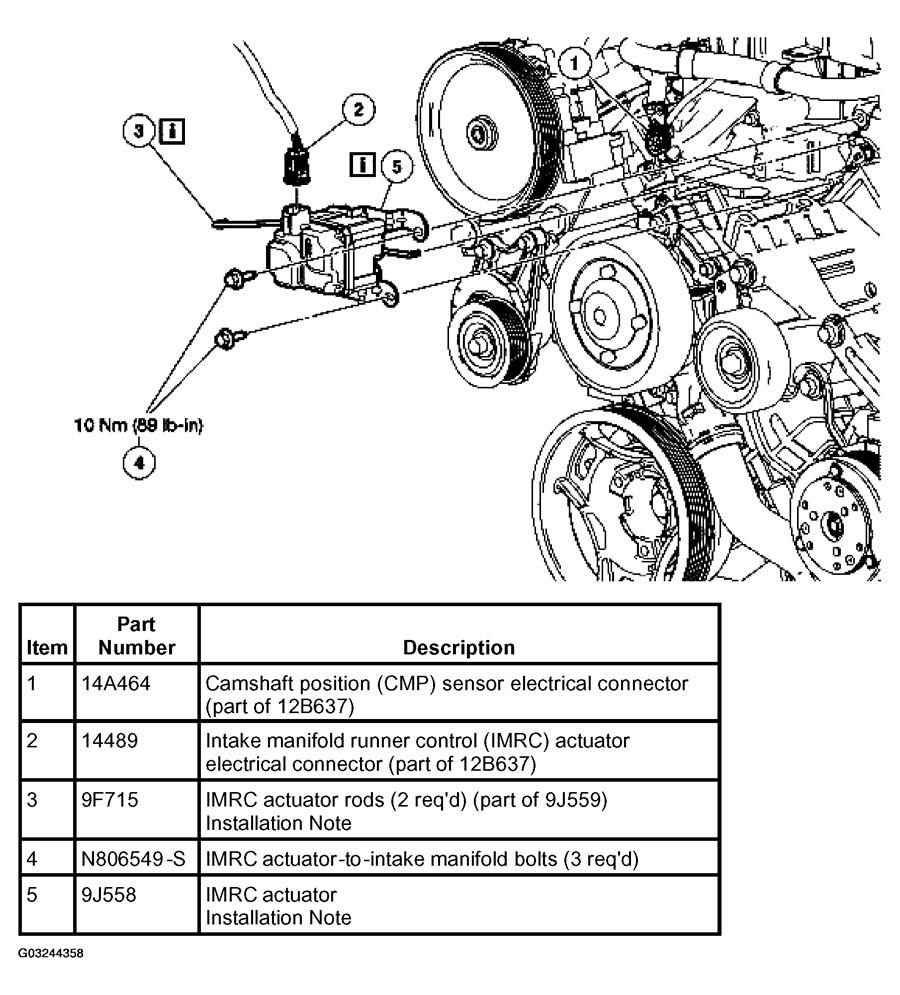

    Fig 1: Intake Manifold Runner Control (IMRC) Actuator Parts Removal Sequence
    G03244358Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
